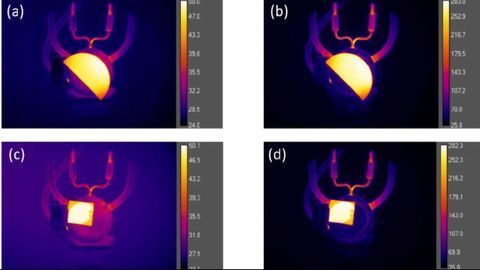

An infrared image of the fused silica window used to test the depth thermography concept. For the project, the team heated the silica, a type of glass, and analyzed it using a spectrometer. They then measured temperature readings from various depths of the sample. Credit: MIKHAIL KATS.
Listen with
Speechify
0:00
Register for free to listen to this article
Thank you. Listen to this article using the player above.

Want to listen to this article for FREE?

Complete the form below to unlock access to ALL audio articles.

Read time: 1 minute

University of Wisconsin–Madison engineers have made it possible to remotely determine the temperature beneath the surface of certain materials using a new technique they call depth thermography. The method may be useful in applications where traditional temperature probes won’t work, like monitoring semiconductor performance or next-generation nuclear reactors.

Many temperature sensors measure thermal radiation, most of which is in the infrared spectrum, coming off the surface of an object. The hotter the object, the more radiation it emits, which is the basis for gadgets like thermal imaging cameras.


Depth thermography, however, goes beyond the surface and works with a certain class of materials that are partially transparent to infrared radiation.


“We can measure the spectrum of thermal radiation emitted from the object and use a sophisticated algorithm to infer the temperature not just on the surface, but also underneath the surface, tens to hundreds of microns in,” says Mikhail Kats, a UW–Madison professor of electrical and computer engineering. “We’re able to do that precisely and accurately, at least in some instances.”


Kats, his research associate Yuzhe Xiao and colleagues described the technique this spring in the journal ACS Photonics.


For the project, the team heated a piece of fused silica, a type of glass, and analyzed it using a spectrometer. They then measured temperature readings from various depths of the sample using computational tools previously developed by Xiao in which he calculated the thermal radiation given off from objects composed of multiple materials. Working backwards, they used the algorithm to determine the temperature gradient that best fit the experimental results.


Kats says this particular effort was a proof of concept. In future work, he hopes to apply the technique to more complicated multilayer materials and hopes to apply machine learning techniques to improve the process. Eventually, Kats wants to use depth thermography to measure semiconductor devices to gain insights into their temperature distributions as they operate.


That’s not the only potential application of the technique. This type of 3D temperature profiling could also be used to measure and map clouds of high temperature gases and liquids.


“For example, we anticipate relevance to molten-salt nuclear reactors, where you want to know what’s going on in terms of temperature of the salt throughout the volume,” says Kats. “You want to do it without sticking in temperature probes that may not survive at 700 degrees Celsius for very long.”


He also says the technique could aid in measuring the thermal conductivity and optical properties of materials without the need to attach temperature probes.


“This is a completely remote, non-contact way of measuring the thermal properties of materials in a way that you couldn’t do before,” Kats says.

Reference
Yuzhe Xiao, Chenghao Wan, Alireza Shahsafi, Jad Salman, Mikhail A. Kats. Depth Thermography: Noninvasive 3D Temperature Profiling Using Infrared Thermal Emission. ACS Photonics, 2020; 7 (4): 853 DOI: 10.1021/acsphotonics.9b01588.
