Mitosis Does its Packing in Layers

Mitosis Does its Packing in Layers

Mitosis Does its Packing in Layers

Mitosis Does its Packing in Layers

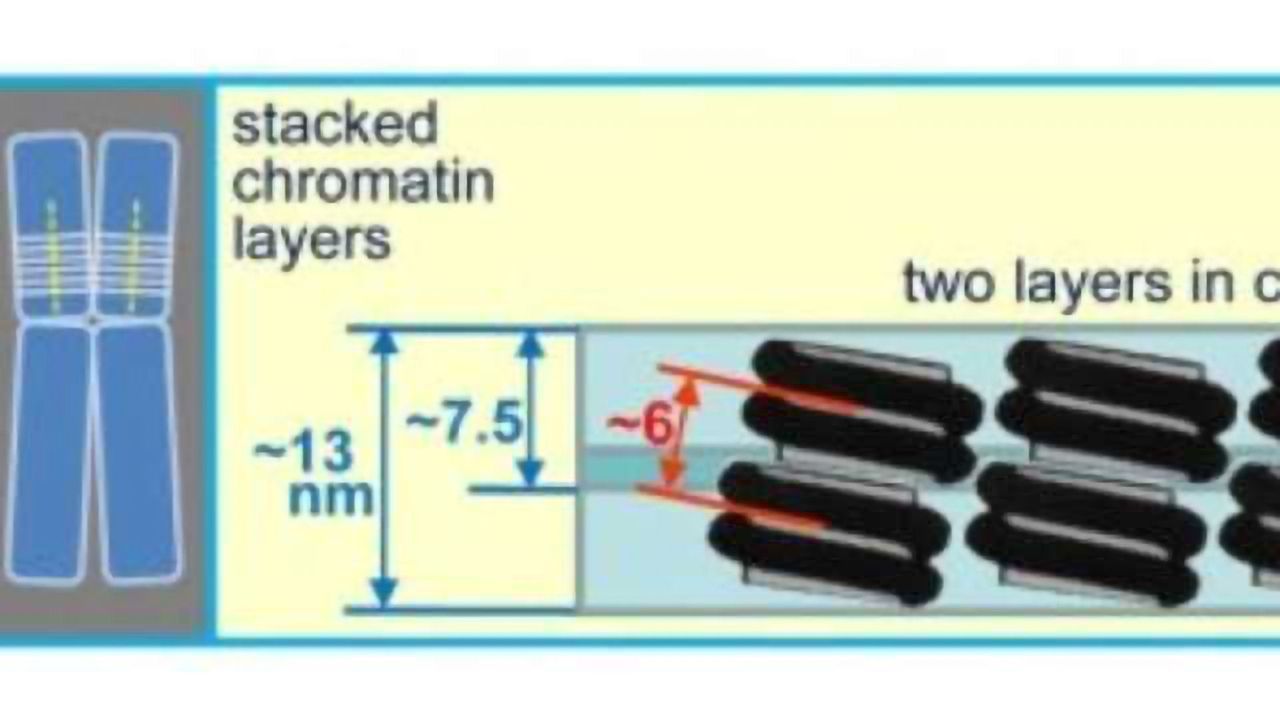

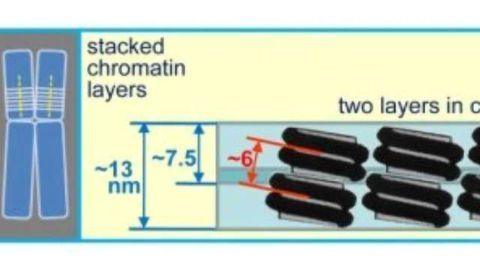

The scheme on the left shows the perpendicular orientation of the chromatin layers within the mitotic chromosomes. The scheme on the right represents the organization of the nucleosomes in two adjacent layers, and the distances obtained in the cryotomograms (in blue) and in the X-ray scattering experiments (in red). Credit: J.R.Daban.
Read time:

Want a FREE PDF version of This News Story?

Complete the form below and we will email you a PDF version of "Mitosis Does its Packing in Layers"

First Name*
Last Name*
Email Address*
Company Type*
Job Function*
Would you like to receive further email communication from Technology Networks?

Technology Networks Ltd. needs the contact information you provide to us to contact you about our products and services. You may unsubscribe from these communications at any time. For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy

In the cell nuclei the DNA is bound to histone proteins and forms long chains of nucleosomes that are called chromatin fibers. In the Chromatin Laboratory at the Department of Biochemistry and Molecular Biology of the UAB, directed by Professor Joan-Ramon Daban, it was discovered in 2005 that the chromatin of mitotic chromosomes forms multilaminar plates. This was a surprising result, which has been criticized because it was not expected that linear fibers of chromatin could give rise to planar structures, and because it is based on conventional electron microscopy and atomic force microscopy techniques that require adsorbing the sample, respectively, on flat surfaces of carbon and mica. In addition, in the case of electron microscopy, the sample has to be fixed with chemical crosslinkers, treated with contrasting agents, and dehydrated.

A new study based on electron microscopy under cryogenic conditions, and synchrotron X-ray scattering, published in EMBO Journal, has shown that in mitotic chromosomes the DNA is densely packed forming stacked sheets of chromatin, which are stabilized by interactions between nucleosomes.

The advantage of the cryo-electron microscopy techniques, used in this new study, is that the sample (uncrosslinked and untreated with contrasting agents) is suspended in an aqueous solution that is kept frozen at -180 ° C, even during imaging. Since the structures to be studied are large and complex, in this work cryo-electron tomography was used because this technique allows capturing many images with different tilt angles and, in the end, a three-dimensional reconstruction of the analyzed structures is obtained.

The three-dimensional reconstructions showed that the chromatin emanating from human chromosomes maintained under physiological ionic conditions is planar and forms multilaminar plates. The thickness measurements obtained (single layer 7.5 nm; two layers in contact 13 nm) suggest that the plates are formed by mononucleosome layers, which are interdigitated between them. The complementary X-ray scattering experiments showed a dominant peak at 6 nm, which can be correlated with the distance between layers and between nucleosomes associated through their lateral faces.

There are multilaminar plates that have the dimensions corresponding to the diameter of a human chromosome (600 nm). This suggests that the chromosomes are formed by stacked layers of chromatin that are oriented perpendicular to the axis of the chromosome. This structure is very compact and probably has the function of protecting the integrity of genomic DNA during cell division.

The research has been led by the Chromatin Laboratory of the UAB (Andrea Chicano, Eva Crosas, and Joan-Ramon Daban). The small-angle X-ray scattering experiments were performed at the beamline NCD-BL11 of the ALBA synchrotron in Cerdanyola del Vallès. The cryotomograms were obtained with the collaboration of Benjamin Engel in the Instruct (EU) cryo-electron microscopy platform at Max-Planck-Institute of Biochemistry in Martinsried (Germany), and the three-dimensional reconstructions were obtained with the collaboration of Joaquín Otón and Roberto Melero at the Instruct image processing platform at the National Center of Biotechnology in Madrid.

This article has been republished from materials provided by Universitat Autonoma de Barcelona. Note: material may have been edited for length and content. For further information, please contact the cited source.

Andrea Chicano, Eva Crosas, Joaquín Otón, Roberto Melero, Benjamin D Engel, Joan‐Ramon Daban. Frozen‐hydrated chromatin from metaphase chromosomes has an interdigitated multilayer structure. The EMBO Journal, 2019; e99769 DOI: 10.15252/embj.201899769.
