New Technique to Characterize Piezoelectric and Ferroelectric Materials

New Technique to Characterize Piezoelectric and Ferroelectric Materials

New Technique to Characterize Piezoelectric and Ferroelectric Materials

New Technique to Characterize Piezoelectric and Ferroelectric Materials

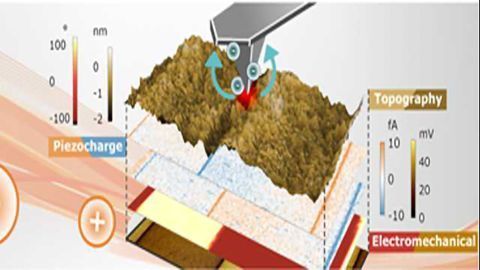

Credit: Universitat Autonoma de Barcelona.
Read time:

Want a FREE PDF version of This News Story?

Complete the form below and we will email you a PDF version of "New Technique to Characterize Piezoelectric and Ferroelectric Materials"

First Name*
Last Name*
Email Address*
Company Type*
Job Function*
Would you like to receive further email communication from Technology Networks?

Technology Networks Ltd. needs the contact information you provide to us to contact you about our products and services. You may unsubscribe from these communications at any time. For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy

Until now, characterizing piezoelectricity at the nanoscale was only possible through the use

of an Atomic Force Microscope using the mode Piezoresponse Force Microscopy (PFM).

However, a team of  researchers have created a new AFM mode that is able to map

piezoelectricity in a direct manner. The new mode, called “Direct Piezoelectric Force

Microscopy (DPFM)” maps piezoelectricity by measuring tiny currents, in the order of

femtoAmpere, produced by the piezoelectric effect with a transimpedance amplifier, which

consists into a current-to- voltage converter.

The amplifier component consists of a Femtoampere Input Bias Current Electrometer

Amplifier populated with a 1 TeraOhm resistor as a feedback resistor in a transimpedance

configuration. An additional voltage amplifier, with the inverting amplifier topology, is located

at the output of the transimpedance, using an ADI AD8429. With such tandem of amplifiers,

researchers were capable of measuring the generated charge of several piezoelectric

materials directly. Such amplifier does not leak almost any of the generated charge, enabling

it is measuring using a standard solid platinum tip. The tip scans the surface to study, and

measured the charge generated by the material. Such simply concept was not completed by

any other research mainly to the particularity of the amplifier used, that released in 2016 by

Analog Devices Inc.

In this particular research, the material is stressed by a tiny needle, an AFM tip with

nanometric size. The tip applies a force in the range of hundreds of microNewton and

measures the generated charge that is created into the material. The new mode was proved

by characterizing several common ferroelectric materials: A Periodically Poled Lithium

Niobate, Bismuth Ferrite (BFO) and different Lead Zirconate Titanate (PZT). The mode is

employed in standard constant force contact mode AFM, by using a solid platinum tip with

part number RMN-25Pt200H. As the mapping is performed in constant mode, the amplifier

gives zero signal while scanning a single domain, however, where the tip crosses a domain,

a current is generated as a consequence of the inversion of the generated charge. The

researchers are able to integrate the current obtained in order to estimate the generated

charge by the material. Just few quantities are really quantitative in AFM, being one of them

the force applied by the tip. By known the force and integrating the current generated,

researchers are able to estimate the d33 piezoelectric constant of the materials scanned.

Force-vs- distance curves where the tip is placed in one spot and the force applied is

changed through a constant force rate applied. By performing such experiments,

researchers are able to distinguish between down and up domains, and it opens a window

into made spectroscopy experiments quantitative.

This new AFM mode enhances this microscopy technique as a standard characterization

technique available for material research specifically for the case of piezoelectricity and


This article has been republished from materials provided by Universitat Autonoma de Barcelona. Note: material may have been edited for length and content. For further information, please contact the cited source.

Piezo-generated charge mapping revealed through Direct Piezoelectric Force Microscopy, A. Gomez et al. , Nature Communications (2017), DOI: 10.1038/s41467-017- 01361-2.
