Custom Parallel Reactor Used in Development of Novel Catalysts

Custom Parallel Reactor Used in Development of Novel Catalysts content piece image
Listen with
Register for free to listen to this article
Thank you. Listen to this article using the player above.

Want to listen to this article for FREE?

Complete the form below to unlock access to ALL audio articles.

Read time: 1 minute

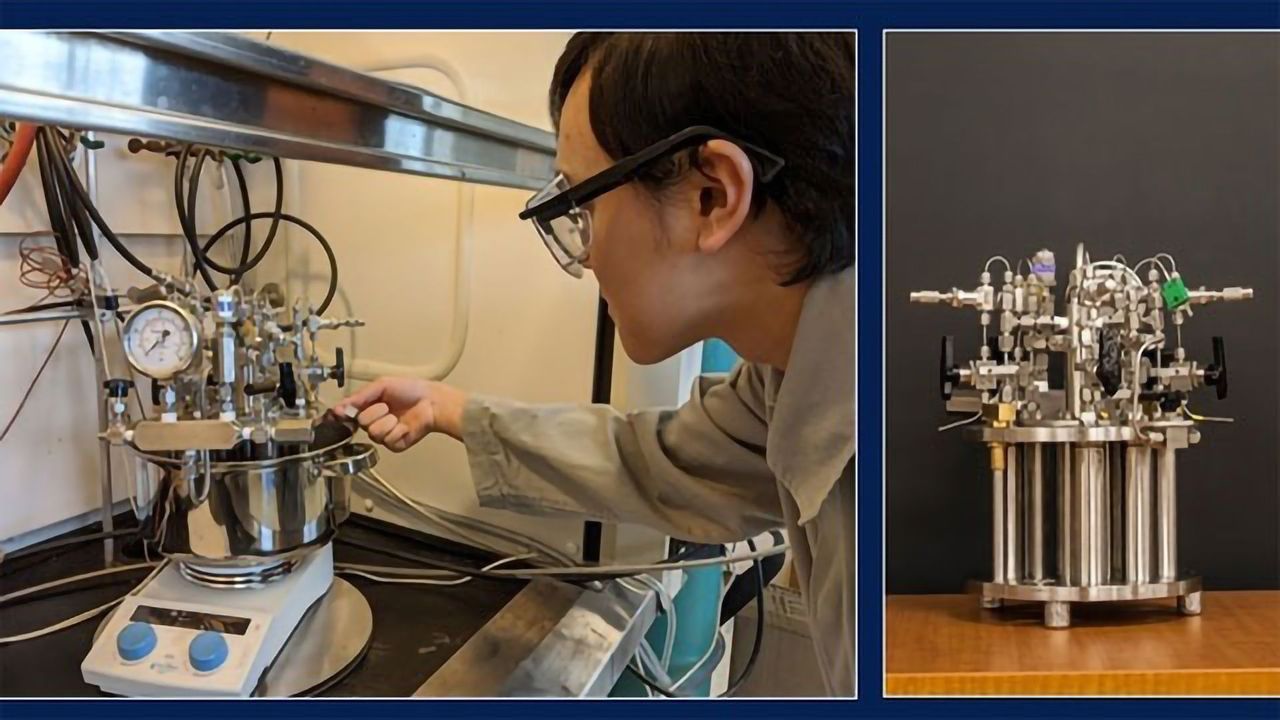

The Chianese Organometallic Chemistry group at Colgate University has been using a custom designed Multicell Parallel High-Pressure Reactor from Asynt to conduct reproducible hydrogenation experiments in parallel, to rapidly determine the kinetic properties of their novel catalysts.

The research activities of the Chianese group focused on the development of new transition metal complexes for catalyzing the hydrogenation of polar compounds. To accelerate this process the group wanted a high-pressure reactor capable of conducting many hydrogenation reactions at once, with rigorous control of the initial concentrations and reaction temperature. They also needed the ability to take and analyze reaction aliquots over the time course of the reaction, which could then be used to for kinetic profiling.

Associate Professor Anthony Chianese, head of the group, commented “By working with the technical team at Asynt we were able to specify a custom version of their Multicell parallel high-pressure reactor that exactly fitted our needs. Before we had the Multicell we were running several test tube reactions within a single batch reactor, meaning that we could only conduct analysis at the end and would often experience contamination between samples. The Multicell now allows us to run many reactions in parallel with no detectable crossover between the headspace of different cells. Importantly, because we can now analyse aliquots while the reactions are running, it is possible to rapidly determine reaction rates for any given catalytic hydrogenation.  Often our organometallic catalysts are highly air sensitive, so it is great to be able to assemble our Multicell reactor inside a glovebox then bring it out to run the reactions. We also really like the fact that the whole unit is user-serviceable with all of the parts, aside from the cells themselves, easily replaceable if there is an issue.”

The Multicell high pressure reactor is designed for undertaking experiments including carbonylation, hydrogenation, catalysis and supercritical fluid reactions, as well as air sensitive material studies. Used in conjunction with a hotplate stirrer the standard 316 stainless steel Multicell reactor offers users the ability to undertake 10 x 30 mL reactions in parallel at pressures of up to 50 bar and temperatures up to 200 °C. To increase the versatility of this high-performance system, Asynt can work with the end user on specific customization to enhance the capabilities of the Multicell towards certain applications. Options include the ability to make additions/take samples under pressure, increased operating conditions up to 350 °C and 200 bar, a 4-position system offering reaction volumes of up to 150 mL, sub-ambient reactor cooling, and the ability to have different temperatures and pressures in each reactor cell.
