Effective, Controlled Turbulent Mixing for Flow Chemistry

Effective, Controlled Turbulent Mixing for Flow Chemistry   content piece image

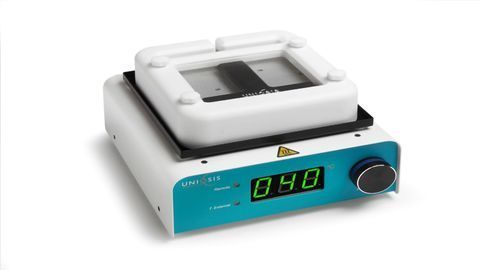

HotChip module fitted with GSM chip adapter.
Listen with
Register for free to listen to this article
Thank you. Listen to this article using the player above.

Want to listen to this article for FREE?

Complete the form below to unlock access to ALL audio articles.

Read time: 1 minute

The Uniqsis range of Glass Static Mixer (GSM) chip reactor blocks produce an efficient, turbulent mixed reagent stream for flow chemistry reactions that is not diffusion dependent.

To achieve highly reproducible flow chemistry scale-up the control of mixing and temperature is essential, particularly for highly exothermic or fast, mixing-dependent reactions

Now available in sizes from 270µl to 20 ml, the recently expanded range of GSM chips from Uniqsis can be used to perform reactions from -80°C to over 150°C. GSM chips up to 2 ml can be operated up to 40-bar and are available in 2-channel or 3-channel inlet configurations.  Larger GSM chips of 10ml and 20 ml have a premixing channel followed by a residence domain and can operate up to 10-bar.

GSM chips can be used as mixing modules prior to a coil reactor residence time unit, or as reactor blocks for rapid exothermic reactions such nitration’s. Nitration is an important synthetic procedure that, following reduction of the nitro group, provides a
useful route for the introduction of amino groups onto aromatic rings. Uniqsis Application Note 22
(https://www.uniqsis.com/fcApplications.aspx) describes how a GSM chip was used to control both temperature and mixing. Under these controlled conditions, selective mono-nitration was rapidly performed at elevated temperature to maximise throughput.

Uniqsis GSM chips are precision machined from inert borosilicate glass to withstand a wide temperature rangeand can be conveniently attached to a FlowSyn column heater module , Cold Coil or Polar Bear Plus cryogenic reactor modules.

For further information on GSM chip reactor blocks please visit https://www.uniqsis.com/paProductsDetail.aspx?ID=ACC_CHIP or contact Uniqsis on +44-845-864-7747 / info@uniqsis.com.

Uniqsis specialises in the design of meso-scale continuous flow chemistry systems for a wide range of applications in chemical and pharmaceutical research. The company’s aim is to make flow chemistry easily accessible to both novices and experienced users.

Close-up of GSM chip reactor block.
