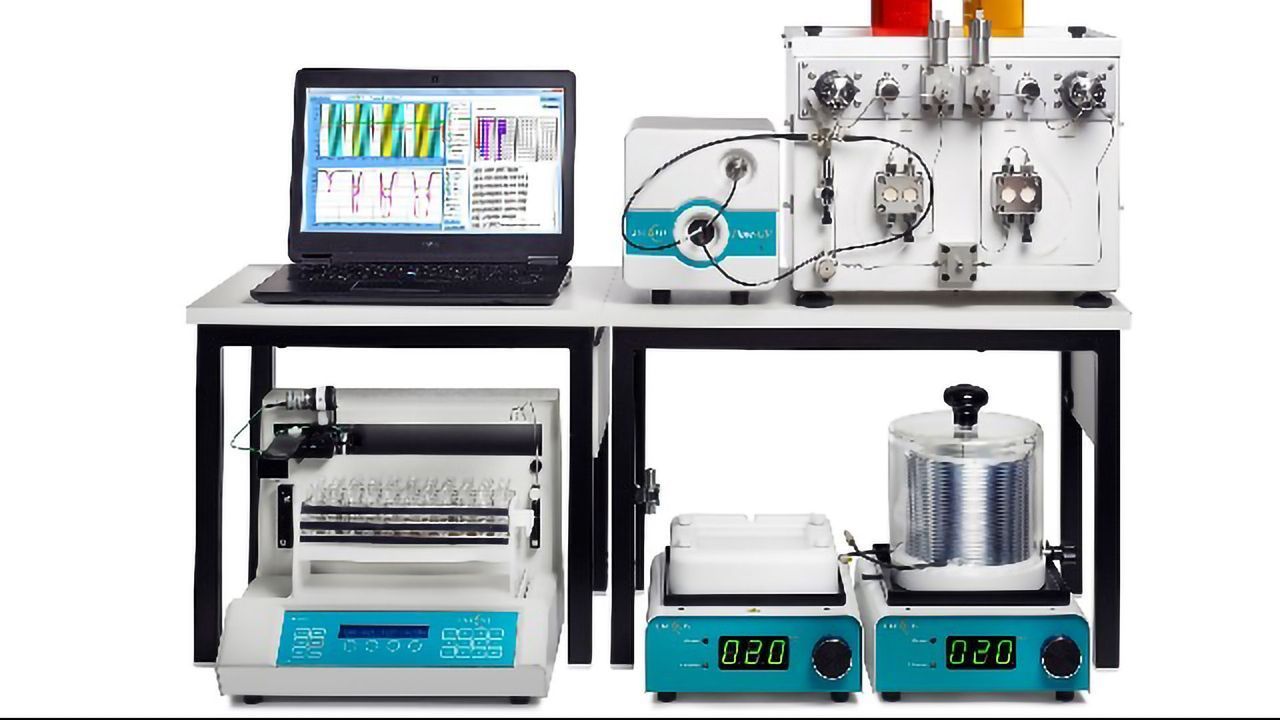

Uniqsis offers an extensive range of individual flow chemistry modules that can be used on any flow chemistry system, designed to enable researchers to configure a flow chemistry system precisely to meet their needs. Uniqsis flow chemistry modules include a comprehensive range of coil reactors and column reactors for homogeneous and heterogeneous reactions, static mixer blocks for fast efficient mixing, a choice of cooling modules for sub-ambient reactions, high-performance photochemical reactors, real-time UV-vis detectors and external pumps for additional reagent channels.

Specifically designed to accommodate Uniqsis glass static mixer/reactor blocks (GSMs), the Hotchip™ is a versatile standalone heated reactor module that can be combined with an existing pump to build your own flow reactor system to increase throughput for scale-up applications.

For sub-ambient applications, Uniqsis offer the Polar Bear Plus GSM™ that incorporates both active cooling down to -30oC and heating up to 150oC in a portable, compact unit.

The HotCoil™ is a heated coil reactor station able to operate up to 300°C compatible with a wide range of coil reactors from 2 to 60 ml with material options including PTFE, PFA, Stainless steel and Hastelloy™.

All Uniqsis coil reactor modules may be converted to multi-position column reactors by fitting the HotColumn™ adaptor. This is ideal for studying catalysis applications utilizing up to 6 individual fixed bed reactor columns. Columns are available in a range of sizes in either glass or stainless steel.

The compact Uniqsis Flow-UV™ detector fits conveniently into even crowded fume cupboards. Monitoring UV-visible absorbance or transmission data allows dispersion to be measured in real-time and facilitates product collection according to the onset and decline of steady-state conditions.

The PhotoSyn™ is a high-power LED photoreactor lamp module for continuous flow applications. Available with a selection of different LED arrays the unit can provide outputs up to 700W from its dedicated programmable power supply.
