Microneedling Therapeutic Stem Cells Into Damaged Tissues
Microneedling Therapeutic Stem Cells Into Damaged Tissues
Mesenchymal stem cells (MSCs) are multipotent in that they naturally replenish the cell types that build our bone, cartilage and adipose tissues. However, their much broader regenerative potential, based on their capacity to migrate and engraft in injured tissues and secrete factors that enhance the formation of new blood vessels, suppress inflammation and cell death, and promote healing, makes them exquisite candidates for cell-based therapies for diseases as varied as cardiovascular, liver, bone and cartilage diseases, lung and spinal cord injuries, autoimmune diseases and even cancer and skin lesions.
MSCs provoke no or negligible adverse reactions in patients that receive them from healthy donors, and can be easily isolated from human tissues, expanded to clinical scales, biopreserved, and stored for point-of-care delivery. This efficiency in preparing medical grade MSCs contrasts with the relative inefficiency with which they currently can be delivered to target tissues in patients. Clinicians often need to administer massive numbers of MSCs with high precision to reach sufficient numbers of cells that successfully engraft and remain functional over time.
To overcome this bottleneck, researchers have developed materials-based approaches in which MSCs are embedded in biomaterial scaffolds that then can be implanted as "patches" in minimally invasive procedures into damaged tissues. However, those cells are often limited in their ability to migrate, overcome tissue barriers, and successfully engraft in tissue microenvironments where their action is needed most. In principle, injection approaches can introduce MSCs into tissues via hypodermic needles in a more targeted manner, but any direct injection to the tissue is invasive and can cause inadvertent tissue damage and side effects like the formation of scar tissue.
Now, a new study reported in Advanced Functional Materials by a team at the Terasaki Institute for Biomedical Innovation in Los Angeles and the University of California, Los Angeles (UCLA) has developed a minimally invasive approach, which deploys "microneedles" that provide a bioactive depot of MSCs. By embedding comparatively low numbers of MSCs in a gel-like material that prolongs their viability and functionality, and targeting damaged tissues with high spatial precision, the researchers showed their approach to accelerate wound healing in a mouse model with excised skin segments.
"Microneedles have been successfully used in the past to painlessly deliver drugs to target tissues such as skin, blood vessels and eyes. We demonstrate here with 'Detachable Microneedle Depots' that an analogous approach can deploy therapeutic cells at target sites," said co-corresponding author Ali Khademhosseini, the Director and CEO of the Terasaki Institute who was previously Director of the UCLA Center for Minimally Invasive Therapeutics. "To achieve this, we developed an entirely new microneedle patch that supports stem cells' viability, responsiveness to wound stimuli, and ability to accelerate wound healing."
At the beginning of their study, Khademhosseini and his co-workers hypothesized that embedding MSCs in a biocompatible and biodegradable biomaterial matrix could help create a hydrated environment with the mechanical properties that stem cells need in order to remain alive and functioning over a longer time. The researchers started by engineering a matrix of gelatin fibers that are cross-linked to each other into a network that could accommodate MSCs. The biomaterial mimicked the normal extracellular environment of tissues that MSCs normally reside in, and it helped to remodel the specific matrix environment in a way that allowed MSCs to take up nutrients and communicate with damaged tissue via soluble factors that they normally receive and dispatch.
The other part of the challenge was to introduce the literal "needle" quality into the cell-delivering device that would enable it to gently penetrate tissues in order to reach their target sites. To this aim, the researcher encased the softer MSC-containing gelatin matrix with a second, much harder biomaterial known as poly(lactic-co-glycolic)acid, in short PLGA. Once the needles were brought into place in a wound bed, the "PLGA shell", which also is biocompatible and biodegradable, slowly degraded, but during the process kept the MSC-containing gelatin matrix in place, allowing MSCs to release their therapeutic factors through emerging gaps in the shell into the damaged tissue. The team showed that in the composite microneedle 90% of MSCs were kept viable for 24 hours, and that, importantly the cells did not lose their potential as stem cells ("stemness"), which was critical for their healing properties.

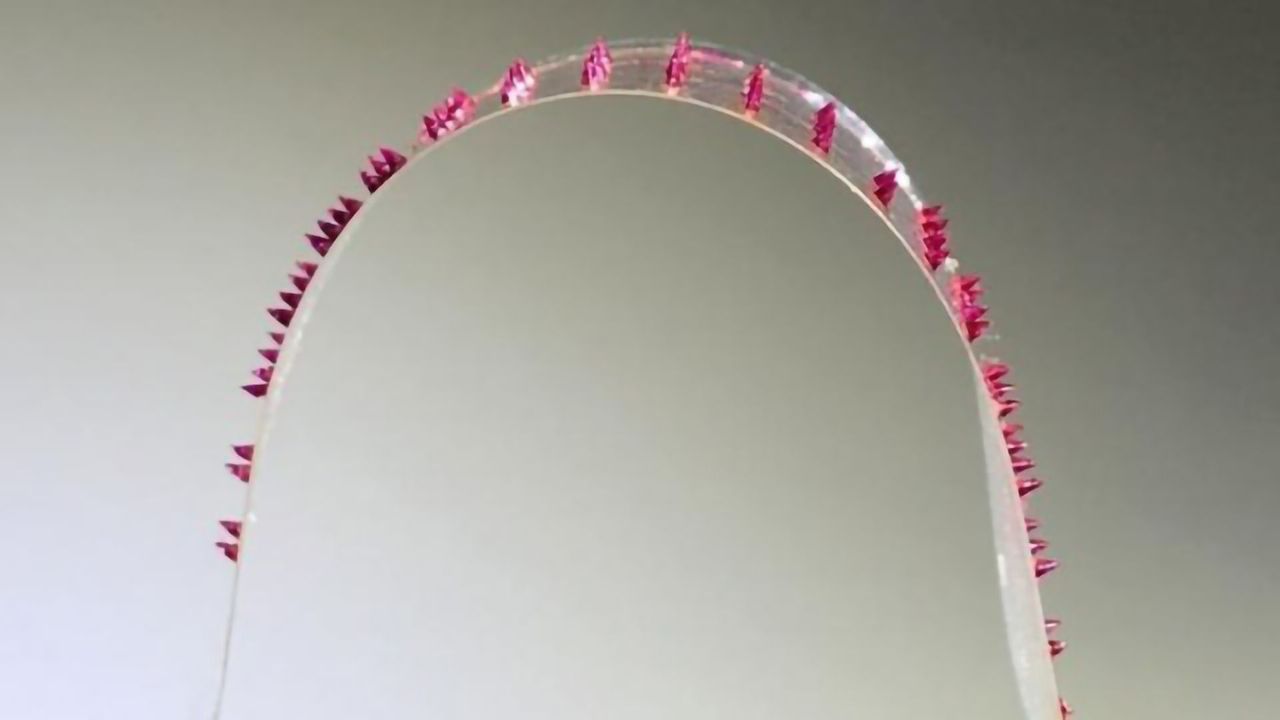

Finally, the team set out to investigate their microneedle concept in a mouse skin wound model in which a defined excision is made in the epidermal tissue layers. To be able to strategically place individual microneedles within the wound bed, a simple and effective deployment mechanism was devised by attaching an array of microneedles on a small strip of scotch tape with their pointy ends facing away from the tape. Precisely positioning the tape with its patterned microneedle surface on the wound, allowed the individual microneedles to penetrate into the wound bed. Then, the tape was peeled off, causing the microneedles to detach and remain embedded in the wound tissue. Khademhosseini and his co-workers summarized the device's salient features by naming it: "Detachable Hybrid Microneedle Depot" (d-HMND).
In the mouse model, the MSC-loaded d-HMND device indeed stimulated a number of critical parameters associated with wound healing. Compared to an equal number of MSCs injected directly into wounded skin, and a version of the d-HMND device that did not contain any MSCs (cell-free), the MSC-containing d-HMND accelerated the contraction of the wound and re-growth of the epidermal skin layers (re-epithelialization). The researchers used a panel of histological and molecular markers to confirm over a period of 14 days that the device suppressed inflammation, and stimulated tissue remodeling, the formation of new blood vessels, and re-growth of hair - all vital signs of a robust wound healing response.
"In future scenarios, d-HMNDs could be rapidly fabricated in clinical laboratories shortly before use, applied to treat skin injuries, and explored more broadly as treatments for a variety of other disorders, including melanoma and other dermatological disorders that could benefit from the power of MSC cells," said Khademhosseini. "The concept would even be compatible with using patient-derived cells in more personalized device approaches." Khademhosseini and his colleagues are exploring further uses of this technology as part of the Terasaki Institute's research program.
Reference: Lee, K., Xue, Y., Lee, J., Kim, H., Liu, Y., Tebon, P., . . . Khademhosseini, A. (2020). Biodegradable Polymers: A Patch of Detachable Hybrid Microneedle Depot for Localized Delivery of Mesenchymal Stem Cells in Regeneration Therapy (Adv. Funct. Mater. 23/2020). Advanced Functional Materials, 30(23), 2070143. doi:10.1002/adfm.202070143
This article has been republished from the following materials. Note: material may have been edited for length and content. For further information, please contact the cited source.
