Visualizing “Unfurling” Microtubule Growth

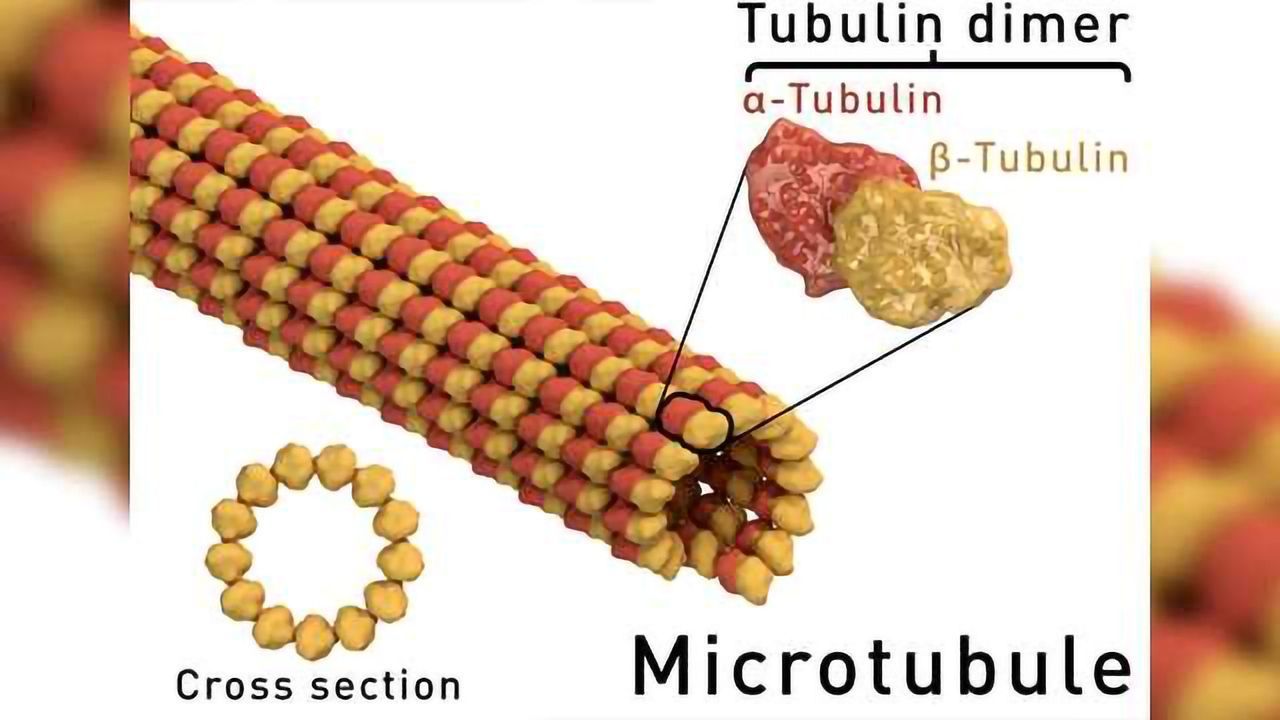

Representation of a microtubule, constructed from alpha/beta-tubulin heterodimers. Image credit: Thomas Splettstoesser
Living cells depend absolutely on tubulin, a protein that forms hollow tube-like polymers, called microtubules, that form scaffolding for moving materials inside the cell. Tubulin-based microtubule scaffolding allows cells to move, keeps things in place or moves them around. When cells divide, microtubule fibers pull the chromosomes apart into new cells. Cells with defects in tubulin polymerization die.
Microtubule fibers are hollow rods made of much smaller tubulin subunits that spontaneously assemble at one end of the rod, but exactly how they do this inside the crowded environment of living cells has been a mystery. Now researchers at UC Davis have uncovered the mechanism that puts these blocks in place, illustrated in a new animation.
“It’s going to transform how people think about microtubule polymerization,” said Jawdat Al-Bassam, associate professor of molecular and cellular biology in the UC Davis College of Biological Sciences. A paper describing the work appears Nov. 13 in the journal eLife.
The work describes snapshots of a set of domains called TOGs, or Tumor Overexpressed Genes, caught in the act of driving tubulin polymerization. As the name suggests, TOGs are abundant in rapidly-dividing cancer cells. They show a similar structure in organisms from yeast to people.
Working in yeast, project scientist Stanley Nithianantham, Al-Bassam and colleagues showed how a protein called Alp14, with four TOG domains, speeds up tubulin polymerization into microtubules by carrying four tubulin units to the correct end of a microtubule and neatly unloads them in the right order to build out the end.
Microtubule fibers form a self-assembling scaffolding inside living cells that is absolutely essential for survival. New work from UC Davis shows how alpha- and beta- tubulin subunits are added to the growing ends of microtubules, unfurling like a sail. Credit: UC Davis
Alp14 represents a group of well-preserved proteins that are essential for cellular homeostasis and division of cells found from a yeast to human cell. It consists of an assembly linked flexible linker with two TOG1 and two TOG2 domains. Add four tubulin units (two per TOG domain) and it forms a circle with the TOGs facing each other and tubulins on the outside.
When the TOG/tubulin circles reach the growing end of a microtubule, TOG1 docks its tubulin with the growing end, destabilizing the circle so that it unfurls, placing four tubulins in order on the end. The name was chosen because the process is like unfurling a folded sail on boat in the wind.
“It’s a complete surprise that it’s such an ordered, concerted process,” Al-Bassam said.
As tubulins units are added to the microtubule strand, they straighten out, driving further disassociation of tubulins from TOGs. The process explains how multiple TOGs speed up tubulin assembly for the first time.
The researchers are following this work with studies of mutant proteins of Alp14 designed with predicted defects in this process to test this suggested mechanism using imaging approaches of dynamic tubulin assembly in and outside living cells. The researchers plan to follow up with further studies of the process, including using cryoelectron microscopy that allows them to visualize single protein molecules in their natural state.
This article has been republished from materials provided by UC Davis. Note: material may have been edited for length and content. For further information, please contact the cited source.
Nithiananatham, S., Cook, B., Chang, F., & Al-Bassam, J. (2018). Structural Basis of Tubulin Recruitment and Assembly by Tumor Overexpressed Gene (TOG) domain array Microtubule Polymerases. doi:10.1101/340026
