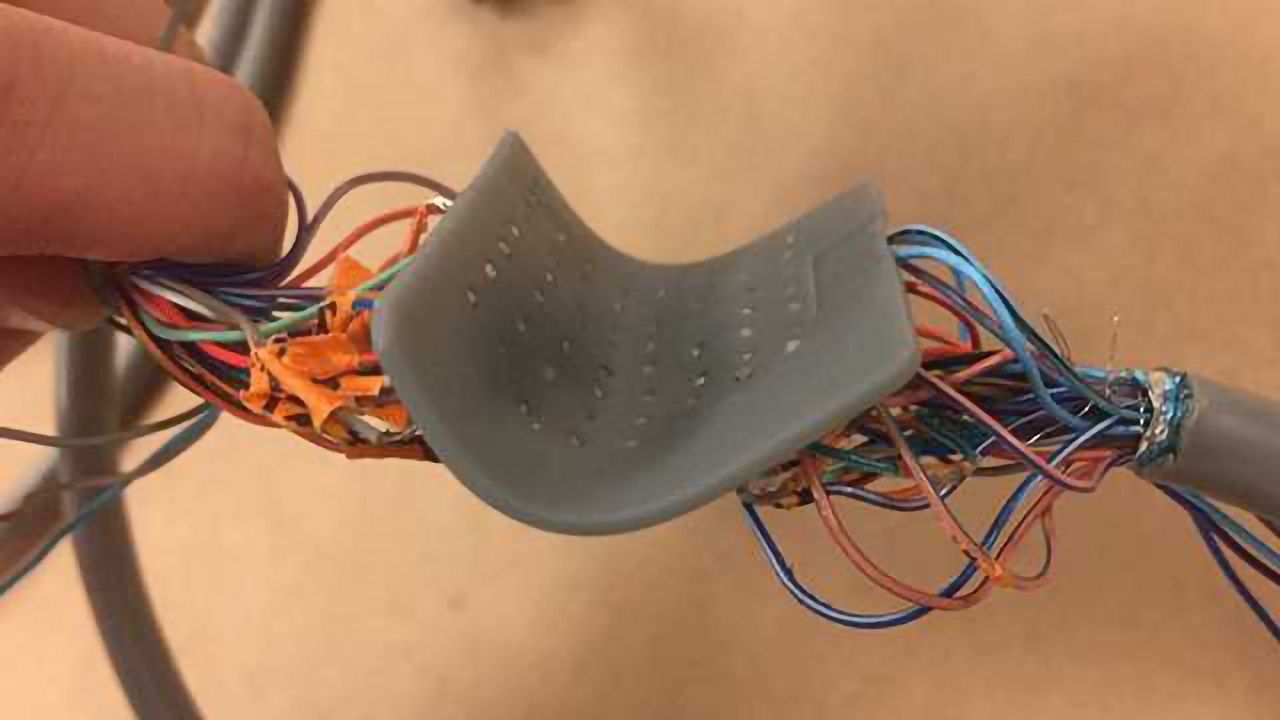

The devices are small, thin and flexible silicone membranes with tiny holes in a grid-like formation, each holding an electrode. Credit: Kevin Cyr
Listen with
Register for free to listen to this article
Thank you. Listen to this article using the player above.

Want to listen to this article for FREE?

Complete the form below to unlock access to ALL audio articles.

Read time: 1 minute

Stanford researchers are investigating new ways to survey electricity in the heart, and are developing cardiac surgical devices that could one day help patients who suffer from a common heart ailment.

Kevin Cyr, a second-year student who is on the research team, explains: “I’m using 3D-printed tools to design cardiac-mapping catheters, devices used by surgeons to map the electrical activity of the heart and find disturbances.”

The research began a few years ago under the direction of Anson Lee, assistant professor of cardiothoracic surgery. Their investigation is focused on atrial fibrillation, or AFib, a heart disorder characterized by irregular and often rapid heartbeats that disrupt the flow of blood from the heart to the rest of the body.

Atrial fibrillation is the most common rhythm disorder, which affects more than 6 million Americans and is responsible for over 750,000 hospitalizations every year. While some AFib patients have few, if any, problems, others suffer serious complications requiring surgery or medications.

The research team are using 3D-printed tools to design cardiac-mapping catheters. Cyr says that finding and understanding rhythm disturbances in patients has been challenging because of the one-size-fits-all nature of existing medical devices, which use electrodes that contact the surface of the heart to measure electrical activity.

Therefore, the researchers created devices that are customized to each patient, conforming to the unique contours and divots of the individual’s heart.

To do this, patients undergo an MRI or CT scan that records an image file of their heart, which is then fed into a 3D printer. Cyr says that using the scan, “we can replicate that natural geometry and anatomy specific to that patient” and apply it to the device.

The device is a small, thin, flexible silicone membrane with tiny holes in a grid-like formation, each holding a tiny electrode. When placed on the surface of the heart’s atrium, the device can measure the electrical activity over that specific region of the heart.

The data is transmitted to a computer, where it produces a recording that shows the electrical activity at that site. The recordings produce a heatmap of the electrical activity that physicians use to identify the regions of the heart that need treatment.

The customized device can track electrical activity with great precision, Cyr says. “We can map in perfect detail this rectangular grid of information and not have to worry about missing signals, poor contact or things like that, which otherwise might throw out errors.”

The devices are currently used on the epicardium, or exterior, layer of the heart.

The researchers are investigating whether their 3D-printed device could also be used to map the interior surface of the heart. If so, they believe it could provide much greater accuracy in measuring the rhythmic disturbance there as well.

The underlying goal of the research is to identify the problem spots where irregular electrical activity occurs and remove them to restore normal electrical flows.

Cyr says the researchers will likely take another year or two to refine their technology, which has not yet been tested on humans.
