Agentic AI in Pharma: From Multi‑Agent Systems to Self‑Driving Labs

Drug discovery has long been constrained by staggering timelines, high attrition rates, and the sheer complexity of navigating chemical, biological, and clinical data simultaneously. Agentic AI in pharma is emerging as a transformative response to these bottlenecks, offering systems capable of autonomous reasoning, sequential decision-making, and iterative self-correction across the full research pipeline. Unlike conventional machine learning models that function as passive predictors, agentic AI systems actively perceive their environment, formulate goals, select tools, and execute multi-step workflows with minimal human intervention: a paradigm shift with far-reaching implications for how laboratories operate.¹ The pharmaceutical industry's persistent challenge of translating computational insights into experimentally validated candidates makes agentic architectures particularly well suited to this domain, where the cost of a failed experiment extends well beyond wasted reagents to encompass months of delayed development timelines.

The transition from single-model inference to coordinated multi-agent architectures reflects the increasing complexity of modern pharmaceutical research. Drug discovery is not a single task but a cascade of interdependent problems spanning target identification, compound screening, synthesis planning, ADMET (absorption, distribution, metabolism, excretion, and toxicity) prediction, and clinical trial design. Each domain requires distinct expertise, and agentic AI in pharma is increasingly structured to reflect that heterogeneity by assigning specialized agents to specific roles within the workflow.²

How multi-agent AI systems work in drug discovery

A multi-agent system (MAS) in the drug discovery context consists of multiple autonomous AI agents, each configured with distinct reasoning capabilities and access to domain-specific tools, operating under a shared orchestration framework. These agents communicate, delegate subtasks, and synthesize outputs to accomplish goals that would exceed the capacity of any single model.

The DrugAgent framework, introduced in 2024, illustrates this architecture in practice. The system deploys an LLM Planner that generates high-level research strategies and an LLM Instructor that translates those strategies into executable machine learning pipelines, incorporating domain-specific biomedical knowledge at each step. Evaluated against benchmark tasks including drug-target interaction (DTI) prediction, DrugAgent achieved a relative improvement of 4.92% in ROC-AUC over established single-agent baselines, a result that underscores the practical advantage of role-specialized agents over generalist systems.³

A further example is ChemCrow, a chemistry-focused agent that integrates a large language model with 18 expert-designed computational tools spanning molecular property calculators, reaction predictors, and safety classifiers. In documented evaluations, ChemCrow autonomously planned and executed the syntheses of an insect repellent and three organocatalysts, and guided the identification of a novel chromophore, tasks that required chaining multiple reasoning steps across heterogeneous tool environments.⁴

The structural advantages of multi-agent AI in drug discovery are well captured in the following comparison of pipeline architectures:

Table 1. Comparison of single-agent and multi-agent AI approaches across key drug discovery workflow stages

Workflow stage	Single-agent approach	Multi-agent AI approach
Target identification	General LLM reasoning from literature	Specialized literature-mining agent with curated biomedical knowledge bases
Compound screening	Sequential in silico prediction via single model	Parallel screening agents evaluating structure, ADMET, and selectivity concurrently
Synthesis planning	Single retrosynthesis model	Dedicated synthesis agent coordinating with safety and reagent availability agents
Data analysis	Batch inference on experimental outputs	Analysis agent receiving real-time data streams from automated experimental platforms
Hypothesis generation	Prompt-based reasoning	Planner agent iterating on experimental feedback to propose refined research directions

The practical impact of these architectures depends heavily on how well agents are orchestrated. Poorly coordinated MAS implementations can propagate errors across pipeline stages, since an agent receiving flawed input from an upstream module will generate downstream outputs that are difficult to audit. Ensuring interpretability, error detection, and controlled handoffs between agents remains an active engineering challenge in the field.²

Self-driving labs in drug discovery: closing the experimental loop

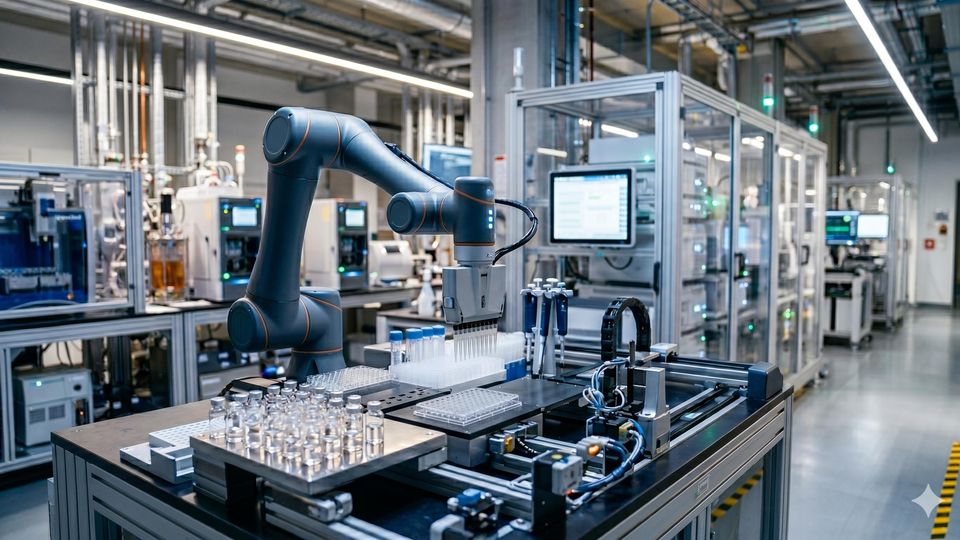

While multi-agent AI systems excel at computational drug discovery tasks, their most powerful expression emerges when coupled with physical laboratory automation in what are termed self-driving laboratories (SDLs). An SDL integrates robotic platforms, automated liquid handling, analytical instruments, and AI orchestration software into a closed-loop system capable of designing experiments, executing them physically, collecting data, and updating its experimental strategy, all without persistent human involvement.⁵

A landmark demonstration of this paradigm was reported by Burger et al. at the University of Liverpool. A free-roaming mobile robot scientist operated autonomously for eight days, conducting 688 experiments across a ten-variable photocatalytic parameter space, driven by a Bayesian optimization algorithm. The system identified photocatalyst formulations that were six times more active than the initial conditions, a result that would have required months of manual experimentation to replicate.⁶

Subsequent architectures have extended this principle to more complex discovery problems. The A-Lab, developed at Lawrence Berkeley National Laboratory, combined active learning, natural language synthesis models trained on the literature, and robotic experimentation to synthesize 41 novel inorganic compounds from a target set of 58 within 17 days of continuous operation.⁷ Although this work focused on materials science, the SDL principles translate directly to pharmaceutical synthesis: an autonomous platform capable of iterating through formulation variables, assessing compound stability in vitro, and revising synthesis parameters based on analytical feedback represents a realistic near-term target for pharma applications.

A comprehensive review published in Chemical Reviews in 2024 categorized SDLs by their level of autonomy, from basic automated liquid handling to fully autonomous systems capable of multi-step hypothesis-driven research. The review identified drug discovery and genomics as two of the highest-impact domains for SDL deployment, while also noting that most current systems operate within narrowly defined experimental spaces and lack the generality required for open-ended research programs. Standardizing the interfaces between SDL hardware and AI orchestration layers, encompassing everything from robotic arm control protocols to data export formats from analytical instruments, remains a critical infrastructure challenge that the field has not yet resolved.

Integrating agentic AI in pharma with physical laboratory automation

The convergence of computational MAS with physical SDL platforms is where agentic AI in pharma takes its most sophisticated form. Rather than separating in silico prediction from in vitro or in vivo validation, integrated systems route AI-generated hypotheses directly to robotic experimental platforms, receive real-time assay data, and update their models accordingly.

ChemCrow's architecture demonstrated an early version of this integration by connecting an LLM to both computational chemistry tools and a robotic synthesis platform, enabling an agent to traverse the conceptual-to-physical boundary within a single workflow. Scaling this approach across the Design-Make-Test-Analyze (DMTA) cycle (the foundational iteration loop of small-molecule drug discovery) requires solving non-trivial problems of instrument interfacing, data standardization, and failure management.

Key challenges identified in the current literature include:

• Data heterogeneity: Experimental instruments generate outputs in incompatible formats, requiring robust parsing layers before analytical agents can interpret results.
• Error propagation: A failed synthesis step or instrument malfunction must be detected and flagged by the system; without active error inspection, agents may continue analyzing invalid data.
• Regulatory traceability: Pharmaceutical regulators require documented evidence of decision-making provenance; fully autonomous pipelines must generate auditable logs of each agent action and experimental parameter.
• Chemical safety: Autonomous systems capable of designing and executing novel synthesis routes must incorporate safety guardrails that prevent the generation or handling of hazardous intermediates.

Addressing these challenges has prompted research into vision-language models for real-time robotic error detection and adaptive workflow correction, as well as modular SDL architectures designed to allow plug-and-play integration of new instruments without full system redesign.

Agentic AI in pharma: outlook and research implications

Agentic AI in pharma represents a structural evolution in how drug discovery is conceived and executed. Multi-agent frameworks bring role-specialized reasoning to the computational stages of the pipeline, while self-driving laboratories extend autonomous decision-making into physical experimental space. The integration of both approaches within closed-loop DMTA platforms offers the prospect of compressing discovery timelines that have historically spanned years into periods of weeks or months.

Significant technical and regulatory challenges remain. Multi-agent systems require robust orchestration, interpretable reasoning chains, and domain-validated tool integration to function reliably in pharmaceutical contexts. Self-driving laboratories must achieve sufficient generality to address the open-ended, hypothesis-driven nature of early-stage drug discovery rather than operating within fixed parameter spaces. As benchmarking frameworks for autonomous drug discovery systems mature, the field will gain a more precise understanding of where agentic AI delivers genuine productivity gains versus where human scientific judgment remains indispensable. The long-term trajectory of these technologies points toward a research ecosystem in which AI agents and human scientists engage in continuous, iterative collaboration, each operating within the scope of their respective strengths.
