Biochemical vs Cell-Based Assays in High-Throughput Screening

High-throughput screening (HTS) relies on robust, scalable in vitro assay formats to identify early hits in drug discovery. Understanding the differences between biochemical and cell-based assays is central to selecting the most appropriate screening strategy.

Both assay types support large-scale compound evaluation, yet they differ significantly in biological relevance, data complexity, and operational demands. These distinctions help researchers align assay selection with the biological question, throughput requirements, and downstream validation needs.

Biochemical assays isolate a defined molecular interaction, while cell-based screening assays capture integrated cellular responses. Each format offers unique advantages and limitations within HTS workflows, influencing hit quality, reproducibility, and follow-up study design.

Biochemical assays in HTS: principles and performance characteristics

Biochemical assays measure the activity of purified proteins, enzymes, or molecular complexes in controlled in vitro environments. These assays are widely used in HTS due to their simplicity, scalability, and compatibility with automation.

Key characteristics of biochemical assays

Common biochemical assay formats

Biochemical assays take many forms (Figure 1).

Enzyme activity assays measure the rate of an enzyme-mediated reaction through substrate use or product formation over time. Common readouts are fluorescence, luminescence, and absorbance.

Binding assays quantify the affinity, specificity, or kinetics of biomolecular interactions, using technologies such as ELISA, FRET, TR-FRET, and surface plasmon resonance.

Protein–protein interaction assays detect inhibitors or modulators of proteins from a large library of compounds, using surface plasmon resonance or biolayer interferometry.

Receptor–ligand displacement assays analyze how a compound under study displaces a known ligand or substrate of a receptor.

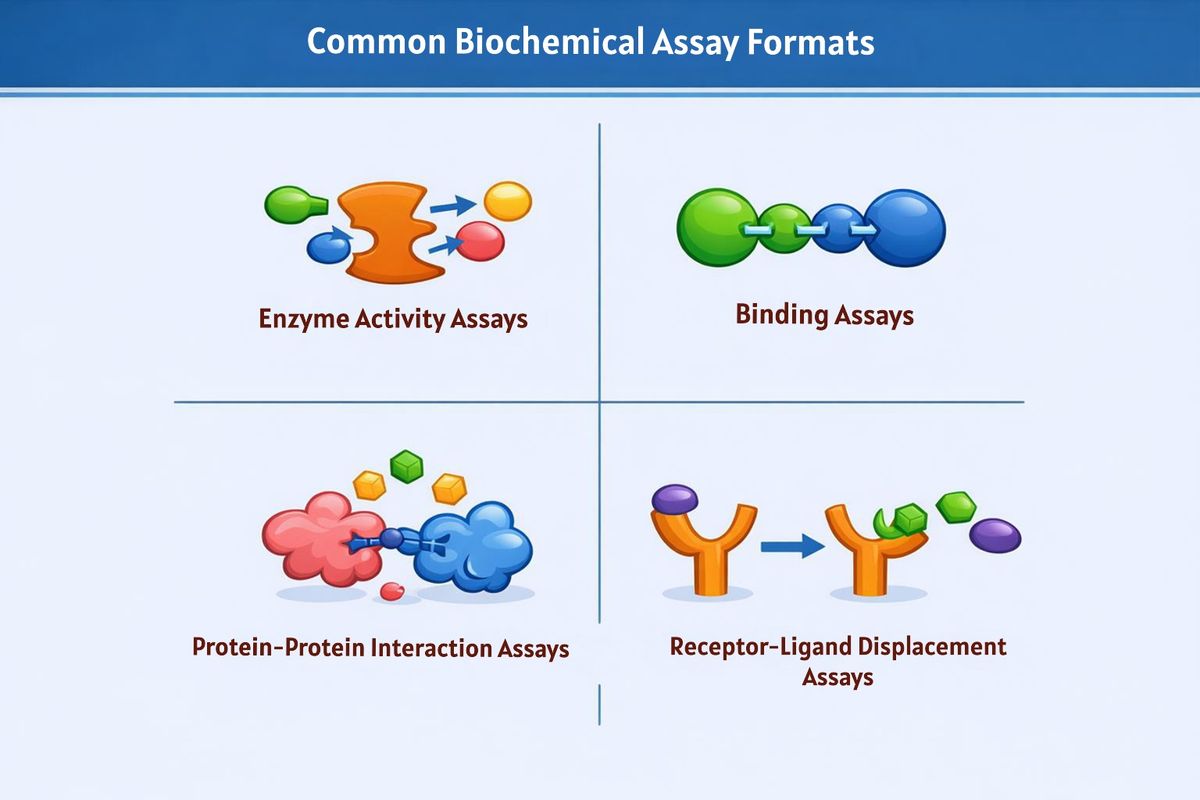

Figure 1: The common biochemical assay formats. Credit: AI-generated image using Microsoft Copilot (2026).

These formats are well-established in early discovery and are often the first line of screening for enzyme targets such as kinases, proteases, and phosphatases. They are known to be efficient and reproducible in HTS environments.

Advantages

Limitations

Biochemical assays are particularly effective for mechanism-focused screening where direct modulation of a molecular target is the primary objective.

Cell-based screening assays: capturing physiological context

Cell-based assays measure compound effects within living cells, providing a more integrated view of biological activity. These assays can capture pathway-level responses, receptor activation, cytotoxicity, or phenotypic changes.

Key characteristics of cell-based assays

Common cell-based assay formats

Many different formats of cell-based assays exist. (Figure 2)

Reporter gene assays quantify pathway activation or inhibition by linking a biological response to the expression of a measurable reporter, such as luciferase, GFP, or β‑galactosidase.

Cell viability and cytotoxicity assays measure cellular health, proliferation, or death following compound exposure. Common readouts include ATP levels, metabolic activity, membrane integrity, or caspase activation.

GPCR or ion channel activation assays detect receptor activation through downstream signaling events such as calcium flux, cAMP accumulation, β‑arrestin recruitment, or membrane potential changes.

High-content imaging assays combine automated microscopy with quantitative image analysis to measure complex cellular phenotypes. Readouts may include morphological changes, organelle dynamics, protein translocation, or multiparametric biomarker expression.

Phenotypic screening assays measure integrated cellular responses without presupposing a specific molecular target. These assays can capture emergent behaviors such as differentiation, apoptosis, migration, or pathway crosstalk.

Figure 2: The common formats of cell-based assays. Credit: AI-generated image using Microsoft Copilot (2026).

Cell-based screening has become increasingly important as drug discovery shifts toward complex disease biology and pathway modulation. Phenotypic assays, in particular, have contributed to the discovery of first‑in‑class therapeutics.

Advantages

Limitations

Cell-based assays are valuable for validating biochemical hits, identifying pathway modulators, and exploring complex biological mechanisms.

Comparing biochemical vs cell-based assays in HTS

Alongside readout types, applications, and factors impacting hit quality, the key differences between biochemical and cell-based assays in HTS workflows surround their biological relevance, assay complexity, throughput capability, and data variability (Table 1).

Table 1: A comparison between HTS biochemical assays and cell-based assays.

This comparison highlights the complementary nature of the two formats. Biochemical assays excel in precision and throughput, while cell-based assays provide biological context that improves hit relevance.

Assay design considerations for HTS workflows

Several assay design principles influence the performance of both biochemical and cell-based formats.

Assay robustness and Z prime factor

The Z prime factor remains a widely used statistical measure of assay quality in HTS. Biochemical assays often achieve a Z prime value of greater than 0.7, while cell-based assays may yield Z prime values between 0.4 and 0.6 due to biological variability.

Signal window and dynamic range

Biochemical assays typically offer larger signal windows, which provide a higher degree of separation between signals and allow hit identification in the presence of variability. Cell-based assays may require optimization of reporter sensitivity, incubation time, and cell density.

Compound interference

Autofluorescence, aggregation, or redox activity can affect biochemical readouts, and cytotoxicity or off-target effects may confound cell-based results.

Automation and miniaturization

Biochemical assays are more readily miniaturized for ultra‑HTS, while cell-based assays require careful handling to maintain cell health during automated liquid handling.

Data interpretation

Biochemical assays provide direct mechanistic insights, whereas cell-based assays require additional controls to distinguish on-target from off-target effects.

These considerations influence assay selection and the balance between throughput, biological relevance, and hit quality.

Integrating biochemical and cell-based assays in screening cascades

Most HTS workflows integrate both assay types to maximize hit confidence and reduce false positives.

Typical screening cascade:

This layered approach improves hit triage and supports downstream lead optimization.

Applications beyond HTS

While HTS is the primary context, both assay types support mechanism-of-action studies, toxicity profiling, pathway mapping, phenotypic drug discovery, and target deconvolution.

These applications highlight the versatility of biochemical and cell-based formats across discovery workflows.

Choosing the right assay format for HTS and beyond

Selecting a biochemical or cell-based assay depends on the biological question, throughput requirements, and desired data type. Biochemical assays offer precision, scalability, and strong assay windows, making them ideal for primary HTS. Cell-based assays provide physiological relevance and pathway-level insights, supporting hit validation and phenotypic discovery.

Together, these formats form a complementary toolkit that strengthens screening outcomes and accelerates early discovery. As assay technologies evolve, improvements in automation, imaging, and multiplexing will continue to enhance the integration of biochemical and cell-based screening assays across research environments.
