Key Components of an Automated HTS Platform

An automated screening platform is central to modern high-throughput screening (HTS), enabling laboratories to process large compound libraries with precision and reproducibility. As screening demands scale in drug discovery and functional genomics, the integration of robotics, detection systems, and data infrastructure has become essential for efficient workflow execution.



For laboratory scientists and researchers, understanding the architectural components of these platforms is critical for designing robust assays, minimizing variability, and ensuring data quality across large datasets.

Core architecture of an automated screening platform

At a high level, an automated screening platform consists of interconnected modules that coordinate physical sample handling with analytical detection and data processing. These systems are designed to operate continuously with minimal manual intervention, supporting reproducible and scalable workflows.



Key architectural layers include:

• Sample handling and robotics
• Liquid handling systems
• Detection and readout instrumentation
• Data acquisition and management infrastructure
• Workflow control and scheduling software



These components are integrated through centralized control systems that synchronize operations and ensure traceability across the screening pipeline (Table 1).



Table 1: The components of an automated screening platform

Component	Primary Function	Key Considerations
Robotics	Plate transport and positioning	Throughput, reliability
Liquid handling	Reagent and sample dispensing	Accuracy, precision
Detection systems	Signal measurement (e.g., fluorescence)	Sensitivity, dynamic range
Data systems	Storage and analysis of results	Scalability, integration
Control software	Workflow orchestration	Flexibility, error handling

Robotics and integrated lab automation

Role of robotics in HTS system components

Robotics form the backbone of integrated lab automation, enabling the movement of microplates between system modules. Robotic arms, conveyors, and plate hotels coordinate sample flow and reduce manual handling errors (Figure 1).

Figure 1: Core capabilities of robotic high-throughput screening (HTS) systems. Credit: AI-generated image created using Microsoft Copilot (2026).



High-throughput environments often rely on modular robotic systems that can be scaled depending on assay complexity and throughput requirements.

Key design considerations

When designing robotic integration within an automated screening platform, several factors influence performance:

• Throughput capacity: Determines the number of plates processed per hour
• System footprint: Impacts laboratory space utilization
• Reliability and uptime: Critical for long screening campaigns
• Flexibility: Ability to accommodate multiple assay formats



While robotics improves efficiency, they also introduce potential bottlenecks if synchronization between modules is not optimized.

Liquid handling systems in screening workflow design

Precision dispensing and reagent management

Liquid handling systems are among the most critical HTS system components, responsible for accurate dispensing of reagents, compounds, and biological samples. These systems operate across a range of volumes, from microliters to nanoliters, depending on assay requirements.



Common liquid handling approaches include:

• Tip-based dispensing systems
• Acoustic droplet ejection technologies
• Non-contact dispensers



Each method presents trade-offs in terms of speed, contamination risk, and cost efficiency (Figure 2).

Figure 2: Key performance metrics used to evaluate liquid‑handling and screening system reliability. Credit: AI-generated image created using Microsoft Copilot (2026).



Optimizing these parameters is essential for maintaining assay integrity, particularly in miniaturized screening formats such as 384- or 1536-well plates.

Impact on workflow design

Liquid handling systems directly influence screening workflow design by determining:

• Assay miniaturization capabilities
• Reagent consumption rates
• Throughput limitations



Careful alignment between liquid handling capacity and downstream detection systems is required to avoid workflow inefficiencies.

Detection technologies and signal readout

Analytical modules in automated screening platforms

Detection systems convert biological or chemical activity into quantifiable signals (Figure 3). These modules are integrated into the platform to provide rapid and sensitive readouts compatible with high-throughput workflows.

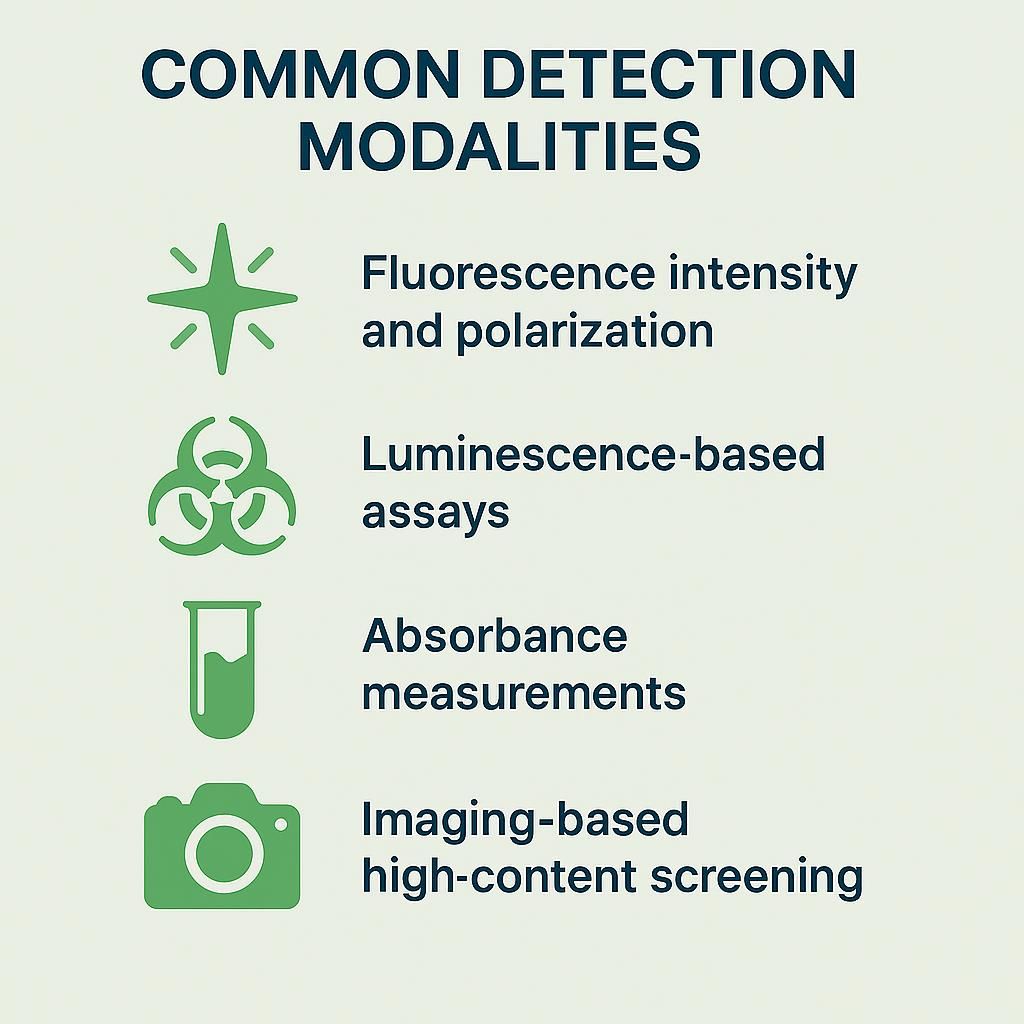

Figure 3: Common detection modalities used in high‑throughput screening assays. Credit: AI-generated image created using Microsoft Copilot (2026).



Each detection method is selected based on assay type, sensitivity requirements, and throughput constraints.

Key technical considerations

Detection performance is influenced by:

• Signal-to-noise ratio
• Dynamic range
• Read speed per plate
• Compatibility with assay format



For example, luminescence assays often offer higher sensitivity and lower background noise compared to fluorescence-based approaches, making them suitable for low-abundance targets.

Integration challenges

Integrating detection systems within an automated screening platform requires:

• Synchronization with plate handling systems
• Standardized data output formats
• Calibration and validation protocols



Failure to align detection throughput with upstream processes can create bottlenecks, reducing overall system efficiency.

Data management and workflow control systems

Data acquisition and integration

Automated screening platforms generate large volumes of data, requiring robust infrastructure for storage, processing, and analysis. Data systems must support real-time acquisition and integration with laboratory information management systems (LIMS).



Core data management functions include:

• Raw data capture from detection instruments
• Data normalization and quality control
• Integration with compound and sample databases
• Audit trails for traceability

Workflow control and scheduling

Centralized control software orchestrates the entire screening process, coordinating interactions between robotics, liquid handling, and detection modules.



These systems enable dynamic adjustment of workflows, allowing laboratories to adapt to changing assay requirements without reconfiguring hardware (Figure 4).

Figure 4: Key software features that enable robust automation and flexible control of HTS workflows. Credit: AI-generated image created using Microsoft Copilot (2026).

Data integrity considerations

Although the focus is technical, system architecture must inherently support:

• Consistent data formatting
• Minimized data loss during transfer
• Scalable storage solutions



Efficient data management is essential for downstream analysis, including hit identification and statistical validation.

Screening workflow design and system integration

End-to-end workflow coordination

Effective screening workflow design ensures seamless interaction between all HTS system components. A typical workflow includes:

1. Compound library preparation
2. Plate dispensing and assay setup
3. Incubation and reaction steps
4. Detection and signal acquisition
5. Data processing and analysis



Each step must be carefully aligned to prevent delays or inconsistencies.

Integration strategies

Two primary integration approaches are used in automated screening platforms (Table 2):

• Modular systems: Flexible configurations allowing independent optimization of components
• Fully integrated systems: Centralized platforms with tightly coupled components



Table 2: Primary integration approaches that are used in automated screening platforms

Integration Type	Advantages	Limitations
Modular	Flexible, scalable	Complex coordination
Fully integrated	Streamlined operation	Limited adaptability

Bottleneck identification

Common bottlenecks in screening workflows include:

• Mismatched throughput between modules
• Insufficient data processing capacity
• Inefficient plate handling sequences



Addressing these challenges requires iterative optimization and performance monitoring across the entire platform.

Optimizing automated screening platform performance

An automated screening platform is defined by the seamless integration of robotics, liquid handling, detection systems, and data infrastructure. Each component plays a critical role in enabling high-throughput, reproducible, and scalable screening workflows.



Advances in integrated lab automation and system architecture continue to refine HTS system components, supporting more complex assays and higher data throughput. For laboratory scientists and researchers, aligning system design with screening workflow requirements remains essential for maximizing efficiency, data quality, and experimental reproducibility.
