Studying the Crystalline Shapes of Drug Compounds With a Novel Microfluidic Device

Studying the Crystalline Shapes of Drug Compounds With a Novel Microfluidic Device

Studying the Crystalline Shapes of Drug Compounds With a Novel Microfluidic Device

Studying the Crystalline Shapes of Drug Compounds With a Novel Microfluidic Device

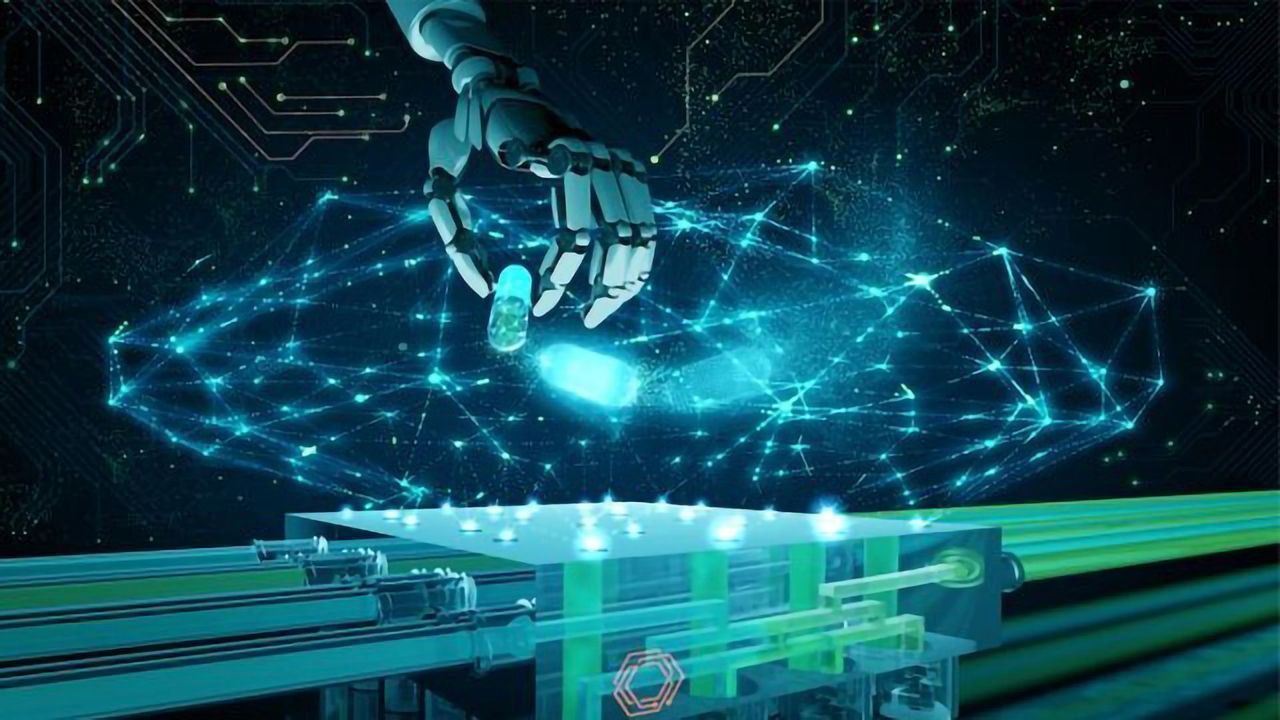

An illustration of the continuous-flow microfluidic device for rapid screening of crystals of active pharmaceutical ingredients. As crystals grow, automated data acquisition and parallel processing allow for high-throughput screening, which can help to engineer better medicines. Credit: Meenesh Singh/ UIC
Read time:

Want a FREE PDF version of This News Story?

Complete the form below and we will email you a PDF version of "Studying the Crystalline Shapes of Drug Compounds With a Novel Microfluidic Device"

First Name*
Last Name*
Email Address*
Company Type*
Job Function*
Would you like to receive further email communication from Technology Networks?

Technology Networks Ltd. needs the contact information you provide to us to contact you about our products and services. You may unsubscribe from these communications at any time. For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy

Researchers at the University of Illinois Chicago have developed a novel continuous-flow microfluidic device that may help scientists and pharmaceutical companies more effectively study drug compounds and their crystalline shapes and structures, which are key components for drug stability.

The device consists of a series of wells in which a drug solution - made up of an active pharmaceutical ingredient, or API, dissolved in solvent, such as water - can be mixed with an anti-solvent in a highly controlled manner. When mixed together, the two solutions allow for the API crystals to form a nucleus and grow. With the device, the rates and ratios at which the drug solution is mixed with the anti-solvent can be altered in parallel by scientists, creating multiple conditions for crystal growth. As the crystals grow in different conditions, data on their growth rates, shapes and structures is gathered and imported into a data network.

With the data, scientists can more quickly identify the best conditions for manufacturing the most stable crystalline form with a desirable crystal morphology -- a crystal with a plate-like shape instead of a crystal with a rod-like shape -- of an API and scale up the crystallization of stable forms.

The UIC researchers led by Meenesh Singh, in collaboration with the Enabling Technologies Consortium, have validated the device using L-histidine, the active ingredient in medications that can potentially treat conditions like rheumatoid arthritis, allergic diseases and ulcers. The results are reported in Lab on a Chip, a journal of the Royal Society of Chemistry.

"The pharmaceutical industry needs a robust screening system that can accurately determine API polymorphs and crystallization kinetics in a shorter time frame. But most parallel and combinatorial screening systems cannot control the synthesis conditions actively, thereby leading to inaccurate results," said Singh, UIC assistant professor of chemical engineering at the College of Engineering. "In this paper, we show a blueprint of such a microfluidic device that has parallel-connected micromixers to trap and grow crystals under multiple conditions simultaneously."

In their study, the researchers found that the device was able to screen polymorphs, morphology and growth rates of L-histidine in eight different conditions. The conditions included variations in molar concentration, percentage of ethanol by volume and supersaturation - important variables that influence crystal growth rate. The overall screening time for L-histidine using the multi-well microfluidic device was about 30 minutes, which is at least eight times shorter than a sequential screening process.

The researchers also compared the screening results with a conventional device. They found that the conventional device significantly overestimated the fraction of stable form and showed high uncertainty in measured growth rates.

"The multi-well microfluidic device paves the way for next-generation microfluidic devices that are amenable to automation for high-throughput screening of crystalline materials," Singh said. Better screening devices can improve API process development efficiency and enable timely and robust drug manufacturing, he said, which could ultimately lead to safer drugs that cost less money.

Reference: Coliaie P, Kelkar MS, Langston M, et al. Advanced continuous-flow microfluidic device for parallel screening of crystal polymorphs, morphology, and kinetics at controlled supersaturation. Lab Chip. 2021. doi: 10.1039/D1LC00218J
