AI in Research Histopathology: Deep Learning for Preclinical Tissue Analysis and Target Validation

Artificial intelligence (AI) in research histopathology is turning whole-slide images of preclinical tissue into structured, quantitative data rather than a pathologist's subjective impression alone. Deep learning models now detect individual cells, quantify biomarker expression, and map tissue architecture across gigapixel slides with a consistency manual scoring cannot match. For target validation and disease-model studies, that shift means histopathology can finally scale with the volume of tissue a modern drug discovery program generates.

Research histopathology requires quantitative, not diagnostic, image analysis

Research histopathology requires continuous, quantitative measurements of tissue change rather than the categorical diagnosis calls used in clinical pathology. A pathologist reading a diagnostic slide is typically sorting disease into one of a limited number of categories, while a preclinical researcher is more often trying to quantify a continuous biological effect, such as how much a candidate compound reduces immune cell infiltration or fibrosis in a disease model.

That distinction matters because a whole-slide image (WSI) is not a small file. A single scanned tissue section can span tens of thousands of pixels in each dimension, and a typical preclinical study generates hundreds of these slides across dose groups, timepoints, and tissue types. Manual review at that scale is not just slow; it introduces the same inter-observer variability that has long complicated pathology-based endpoints.

Quantitative, reproducible scoring is exactly what target validation and disease-model research need, since a candidate target's biological relevance often rests on subtle, graded tissue changes rather than a clear positive or negative call. That research-specific framing is distinct from the diagnostic and companion-testing applications that dominate much of digital pathology. It also shapes which deep learning architectures and tools are actually useful for a preclinical imaging pipeline.

Deep learning architectures for whole-slide image analysis

Deep learning histopathology research relies on a small set of architectures built specifically to handle gigapixel whole-slide images and limited pixel-level annotation, rather than the standard convolutional neural network classifiers used for ordinary photographs. Because a WSI is far too large to feed into a network directly, most pipelines divide the image into thousands of smaller patches and apply models designed to work at that patch or object level (Figure 1).

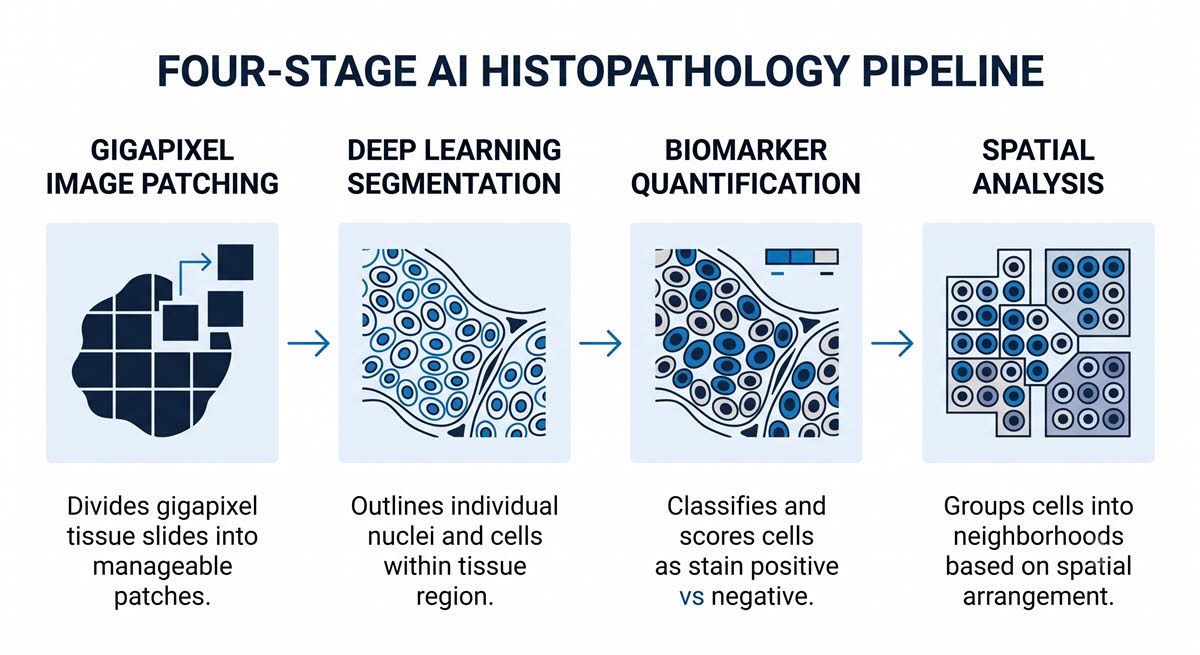

Figure 1: A four-stage schematic of the research histopathology AI pipeline, from whole-slide image patching through spatial neighborhood analysis. Credit: AI-generated image created using Google Gemini (2026).

Nuclear segmentation networks address the cell-level end of this problem. HoVer-Net, for example, predicts the horizontal and vertical distances of each nuclear pixel to its center of mass. This design lets it separate densely clustered, overlapping nuclei that simpler pixel-classification methods tend to merge into a single object, while simultaneously classifying nuclear type through a dedicated branch of the same network.

At the whole-slide level, a different problem predominates: most preclinical and diagnostic slides carry only a single label per section, not pixel-by-pixel annotation. MIL frameworks solve this by treating each WSI as a bag of patches and then learning which ones drive the slide-level result. Clustering-constrained attention multiple instance learning (CLAM), an attention-based MIL method, identifies the specific subregions that most influence a slide-level classification. This gives researchers an interpretable heatmap rather than an opaque prediction.

Generalist cell segmentation tools originally built for cultured cells and dissociated tissue, such as Cellpose, also extend to intact tissue sections. Cellpose was trained on a dataset of more than 70,000 segmented objects spanning highly varied image types, which is part of why the same generalist model can be applied to tissue-embedded nuclei without the retraining or parameter adjustment that earlier specialist tools required. Open-source viewers such as QuPath provide the scaffolding that ties these architectures together. This offers built-in cell detection, along with the ability to import externally trained deep learning models for a specific tissue or biomarker.

AI-based tissue biomarker quantification for target validation

Tissue biomarker quantification for target validation depends on converting a stained slide into a numerical value that behaves consistently across animals, timepoints, and studies, and AI-based image analysis enables that consistency at scale. Traditional IHC scoring asks a pathologist to estimate staining intensity and the percentage of positive cells by eye, a process that is fast for a handful of slides but becomes less reproducible as the workload grows.

QuPath illustrates how this quantification works in practice. Its object-based data model can detect and classify millions of cells within a single WSI, scoring each one for biomarker positivity and generating a quantitative cellular map of the entire tissue section rather than a handful of manually selected fields.

Pathology has historically supported drug development by defining a target's mechanism of action and pharmacodynamics well before any clinical question arises. AI-based quantification extends that role by making biomarker readouts objective enough to compare across independent target validation studies. Commercial platforms such as HALO AI apply similar deep learning-based cell detection and classification workflows within a validated, regulated environment, which matters for studies that will eventually support a regulatory submission.

Because target validation studies often need to detect a subtle, dose-dependent change in biomarker expression rather than a clear positive or negative result, the reproducibility gain from automated scoring is arguably more valuable here than in settings where a rough visual estimate is sufficient. A biomarker readout that shifts by a few percentage points between two independent scorers can obscure exactly the kind of graded pharmacodynamic effect a target validation study is designed to detect.

Preclinical pathology image analysis for disease models and toxicology

Phenotyping disease models and screening for treatment-related toxicity both depend on detecting histopathological changes across large numbers of tissue sections, a task where preclinical pathology image analysis has moved from a research curiosity to genuine practical use. Toxicologic pathology in particular has historically lagged behind human diagnostic applications in adopting these methods. In fact, one meta-review of deep learning studies published between 2013 and 2019 found that nearly all focused on human cancer diagnosis rather than on normal and treatment-related findings that dominate preclinical safety studies.

That gap is closing. One study trained a U-Net-based deep learning network to detect, classify, and quantify seven distinct types of liver lesions, including vacuolation, bile duct hyperplasia, and single-cell necrosis, then validated across 255 whole-slide images of rat liver tissue from young Sprague Dawley rats. Applying the same trained model consistently across every slide in a toxicology study removes the drift that can creep into manual scoring conducted over weeks or months by a single pathologist.

Disease-model phenotyping raises a related but distinct challenge. Rather than grading a known lesion type, researchers often need to characterize an unfamiliar or heterogeneous phenotype produced by a genetic or chemical model. Nuclear segmentation and classification networks such as HoVer-Net support this kind of open-ended characterization by extracting large panels of per-cell morphological features, which can then feed into downstream statistical or machine learning models rather than relying on a single predefined score.

The practical value in both toxicologic pathology and disease-model work comes from the same source. An AI model applies an identical decision rule to every slide, which converts pathology assessment from a source of study-level variability into a stable, reproducible measurement.

Spatial analysis of tissue architecture in research histopathology

Spatial tissue analysis goes beyond counting or classifying individual cells to ask how those cells are arranged relative to one another, a question that matters directly for understanding disease models and drug mechanisms. Immune cell infiltration, for example, is often more informative as a spatial pattern, such as whether T cells cluster at a tumor margin or infiltrate broadly, than as a simple density measurement averaged across an entire section.

Cellular neighborhood analysis has become the standard computational approach to this problem in multiplexed tissue imaging. These methods typically build a spatial graph connecting each cell to others within a defined radius or a fixed number of neighbors. Cells are then clustered by the composition of their local neighborhood rather than by their expression profile alone, an approach that tools such as SPIAT, Giotto, and histoCAT apply to highly multiplexed tumor microenvironment datasets.

Cellpose-style segmentation and StarDist's star-convex polygon representation both serve as the foundational step for this kind of spatial work in tissue, since accurate single-cell boundaries have to exist before any neighborhood or proximity statistic can be computed. The same underlying cell and nucleus segmentation that supports routine microscopy workflows extends naturally into tissue sections, just applied at the scale of a whole slide rather than a single field of view.

Various tools can be adopted, and where each fits within the workflow depends on its function (Table 1).

Table 1: A qualitative comparison of AI tools commonly applied across the research histopathology workflow.

Tool	Primary function	Where it fits in the workflow
QuPath	Open-source whole-slide viewing, cell detection, and biomarker scoring	Tissue biomarker quantification and general WSI analysis
HALO AI	Validated, commercial deep learning image analysis	Target validation studies requiring a regulated environment
StarDist	Star-convex polygon segmentation for densely packed nuclei	Nuclear segmentation in dense tissue regions
Cellpose	Generalist deep learning cell and nucleus segmentation	Cell segmentation extended from culture into intact tissue

A practical framework for validating an AI-based tissue quantification pipeline before relying on it for target validation typically follows a consistent sequence:

1. Establish ground truth by having one or more trained pathologists manually annotate a representative subset of slides across the expected range of biomarker expression.
2. Train or configure the segmentation and classification model on that annotated subset, keeping a held-out portion of slides completely separate from training.
3. Compare the model's quantitative output against the held-out manual annotations, checking agreement across the full expression range rather than only at the extremes.
4. Apply the validated model across the complete study cohort using identical settings for every slide, and flag any images with staining or scanning artifacts for manual review.
5. Periodically recheck the model's output against a small manual sample as new studies are processed, since staining batches and scanner calibration can drift over time.

Building this kind of spatial and quantitative validation into a preclinical imaging pipeline aligns naturally with efforts to map gene expression onto tissue. Both fields depend on the same accurate, spatially resolved cell segmentation as their computational foundation.

AI in research histopathology is making target validation reproducible

AI in research histopathology is not replacing the pathologist's biological judgment; it is replacing the variability that crept into pathology assessment whenever that judgment had to be applied identically across hundreds of slides. Deep learning architectures built for whole-slide images, from nuclear segmentation networks to MIL classifiers, provide researchers with tools that scale to the tissue volumes generated by a modern preclinical program.

The result is a research histopathology workflow that fits naturally alongside the broader shift toward AI and data science in life science research: quantitative, reproducible, and scaled to match the pace at which preclinical studies now generate tissue data.
