High-Content Screening Image Analysis With AI: From Phenotypic Data to Biological Insight

High-content screening (HCS) image analysis with AI has become the only realistic way to process the millions of cell images a single screening campaign now produces. Manual review of that volume of data is not merely slow; it is simply impossible at the scale at which modern phenotypic screens now operate. This guide walks through how AI high-content screening analysis converts raw multi-channel images into interpretable biological and chemical insight.

How AI high-content screening analysis processes raw images

HCS pairs automated microscopy with multi-well plates to capture fluorescent images of cells across dozens of imaging sites per well, multiple channels per site, and hundreds of plates per campaign. A single screen can easily produce millions of individual cell images, and public reference datasets illustrate the scale directly. For example, the Joint Undertaking for Morphological Profiling (JUMP) Cell Painting Consortium built a resource of three million cell images and morphological profiles of cells exposed to matched chemical and genetic perturbations.

That volume of raw pixel data carries no biological meaning on its own. Before any question about compound activity or gene function can be asked, each image must be segmented into individual cells, and each cell must be reduced to a set of quantitative measurements that can be compared across wells, plates, and experiments. This conversion step, not the imaging itself, is usually the practical bottleneck in a screening campaign, and it sits within the same broader movement toward AI-driven life science research reshaping genomics, data management, and computational methods across biology.

Older high-content assays sidestepped some of this complexity by measuring only one or two predefined endpoints, such as nuclear translocation of a single protein. That approach is fast to analyze, but throws away most of the information in the image. Modern HCS workflows are built around the opposite assumption: that the image contains far more biological signal than any single predefined readout can capture, and that AI-driven analysis is the only way to extract it at scale.

Throughput is the underlying constraint that makes AI unavoidable, rather than merely convenient, in this context. Manual review simply cannot keep pace with automated image acquisition: a single high-content campaign can generate more images while one plate is being imaged than a human analyst could carefully review in an entire working day. Screening throughput has increased faster than any plausible expansion of manual curation capacity, which is what pushed AI-driven image analysis from a research curiosity into the default operational requirement for running an HCS campaign.

Classical vs deep learning AI high-content screening analysis

The classical approach to HCS image analysis segments cells and then measures a predefined set of engineered features on each one: area, shape descriptors, intensity statistics, and texture patterns. A person decides in advance which measurements matter, and the resulting feature table is what downstream statistics or classifiers operate on. This approach is interpretable by design, as a researcher can trace a result back to a specific, named morphological measurement.

Deep learning approaches instead train neural networks to learn feature representations directly from raw pixel data, without a person specifying what to measure first. This shift matured to the point that mainstream open-source tools began incorporating it directly. CellProfiler's deep learning integration arrived with the tool's 2018 update, which added neural network processing alongside its existing engineered-feature pipeline. This move reflects how deep learning has evolved from a specialist technique to a standard feature in general-purpose HCS software.

Neither approach is uniformly better. A comparison of an ensemble tree classifier trained on engineered features against a convolutional neural network (CNN) trained directly on images found equivalent MOA prediction accuracy for the two methods across seven of eight tested breast cancer cell lines when each model was trained and evaluated on the same cell line. The picture changed when the models were asked to generalize to a cell line neither had seen during training. The CNN's accuracy dropped more sharply than the tree-based classifier's. Researchers linked this gap to normalization steps that remove cell-line-specific morphology in the engineered-feature pipeline but are absent from raw-image CNN training.

Increasingly, HCS analysis frameworks avoid choosing a single, exclusive approach and instead combine them. Recent end-to-end phenotypic learning frameworks incorporate pre-extracted engineered morphology features as a supervisory signal alongside a deep learning encoder, using the interpretability and normalization benefits of engineered features to guide and stabilize what the deep learning component learns from raw images. This hybrid direction reflects a practical convergence rather than a verdict in favor of either method on its own.

Phenotypic profiling and Cell Painting for AI high-content screening analysis

Phenotypic profiling takes the opposite strategy from single-endpoint assays. Rather than choosing one readout in advance, it measures as many morphological features as possible and lets the pattern of change identify what happened biologically. Cell Painting, described in a widely used protocol for multiplexed fluorescent labeling, is the assay most responsible for making this unbiased approach practical at scale. It uses a panel of dyes that bind to different cellular compartments, imaged together to build a multiparametric morphological fingerprint for each cell.

That fingerprint does not need to be interpreted at the time of image acquisition. Because the assay is unbiased with respect to mechanism, the same dataset can later be mined for compound toxicity signatures, gene function annotation, or disease phenotype characterization. These could be questions that the original screen was never explicitly designed to answer. This flexibility is a major reason Cell Painting has become the default choice for large-scale academic and pharmaceutical phenotypic screening programs.

The scale of modern Cell Painting datasets has grown to match this ambition. Public consortium data now spans well over 100,000 chemical and genetic perturbations captured under a standardized protocol across multiple laboratories. This provides the diverse, large-scale training data that deep learning feature extraction methods need to generalize well.

That scale matters most for the questions researchers had not thought to ask when the screen was designed. Because the morphological fingerprint captures broad cell state rather than one predefined outcome, the same Cell Painting dataset can be revisited months or years later to test an entirely new hypothesis. For example, whether a compound shelved for lack of efficacy against its original target instead produces a phenotype relevant to a different disease area. This retrospective value is difficult to replicate with narrower, single-endpoint assays, where the data simply does not exist to answer a question nobody anticipated at the time of screening.

Multi-channel feature extraction in AI high-content screening analysis

Each Cell Painting image is really a stack of separate fluorescent channels captured from the same field of view, one per stain. Multi-channel feature extraction is the step that turns that stack into a single, comparable representation per cell. It is where classical and deep learning methods diverge most visibly within AI-driven HCS analysis (Figure 1).

DeepProfiler, an open-source framework built around the EfficientNet architecture, learns representations from raw images using weak supervision from experimental metadata such as compound and concentration labels, rather than relying on hand-defined measurements. Its developers reported that the resulting learned representations improved downstream analytical performance by up to 30% relative to classical engineered features.

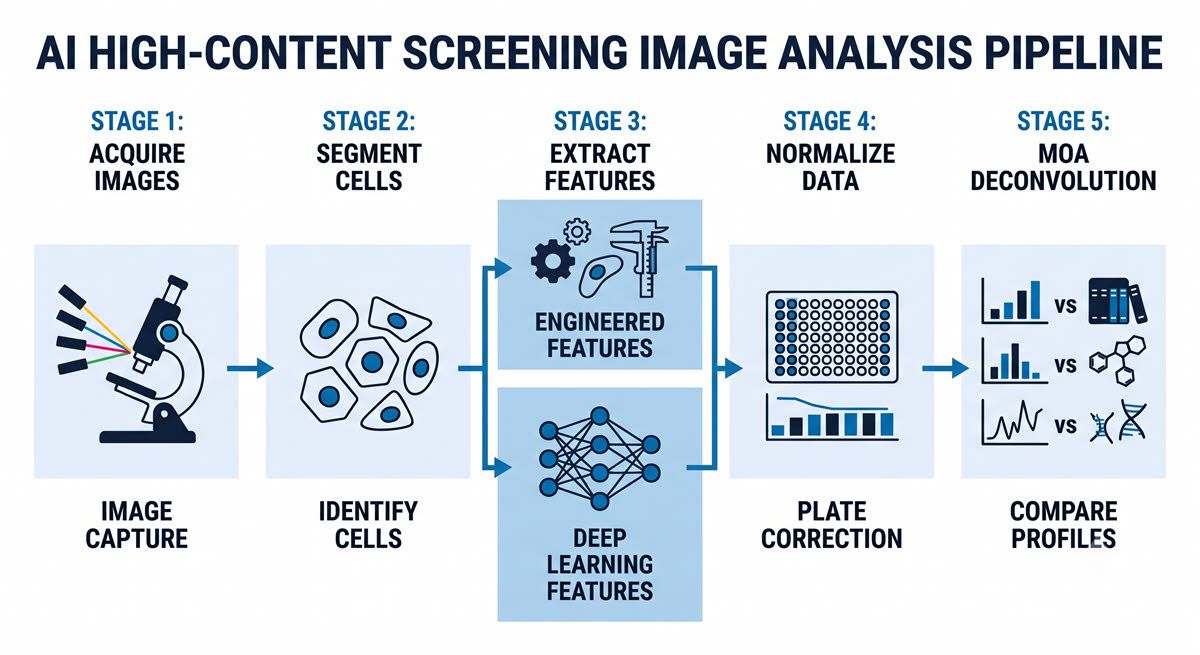

Figure 1: A five-stage flowchart of the AI-driven high-content screening image analysis pipeline, from raw image acquisition to MOA comparison. Credit: AI-generated image created using Google Gemini (2026).

MOA deconvolution is the analytical task that most directly depends on the quality of this feature extraction step. The logic is straightforward: compounds that act on the same biological pathway tend to produce similar morphological changes, so an unannotated compound's MOA can be inferred by comparing its morphological fingerprint against a reference library of compounds with known mechanisms.

In practice, that comparison follows a consistent sequence regardless of whether the underlying features come from a classical or deep learning pipeline:

1. Segment cells and extract per-cell morphological features, either through an engineered pipeline or a learned representation model.
2. Normalize features on a plate-by-plate basis against negative controls to remove batch and plate effects.
3. Aggregate single-cell measurements into a per-well or per-treatment morphological profile.
4. Compare the unannotated profile against a reference library of profiles from compounds with known mechanisms, using similarity search or a trained classifier.
5. Validate candidate mechanism assignments against orthogonal evidence, such as known target biology or an independent assay, before treating the prediction as confirmed.

The choice between similarity search against a reference library and a trained classifier matters most when a screen needs to generalize beyond the exact conditions under which it was trained. Classifiers trained on engineered, normalized features tend to hold up better across genuinely novel biological contexts than models trained end-to-end on raw images, even when the two approaches perform equivalently within a single, familiar cell line.

Key tools for AI high-content screening analysis: CellProfiler, DeepProfiler, and KNIME

Three high-content imaging AI tools account for a large share of practical HCS image analysis workflows in academic and industry labs, and each serves a different part of the pipeline rather than competing directly with the others (Table 1).

CellProfiler, developed at the Broad Institute's Imaging Platform, provides a modular, no-code pipeline builder for segmentation and engineered feature extraction. It has supported neural network-based processing modules since its 2018 update.

DeepProfiler generates learned morphological representations directly from multi-channel Cell Painting images using a deep convolutional architecture. It offers an alternative to engineered feature extraction for labs with the computational infrastructure to train and apply it.

Finally, KNIME provides a visual workflow environment for chaining feature tables, normalization steps, and statistical or machine learning models together without requiring custom scripting. It is frequently used downstream of CellProfiler or DeepProfiler to build a complete analytical pipeline.

Table 1: A qualitative comparison of the three tools most commonly used together in AI-driven HCS image analysis pipelines.

Tool	Primary approach	Typical role in the pipeline
CellProfiler	Engineered feature extraction with optional neural network modules	Segmentation and per-cell feature measurement
DeepProfiler	Deep learning representation learning from raw multi-channel images	Learned feature extraction as an alternative to engineered measurements
KNIME	Visual, no-code workflow and analytics platform	Downstream normalization, statistics, and classifier deployment

These tools are commonly chained together rather than used in isolation. A typical pipeline might use CellProfiler for segmentation and initial feature measurement, incorporate DeepProfiler embeddings where engineered features are not capturing enough biological variation, and hand the resulting feature tables to KNIME for normalization, visualization, and classifier training.

Understanding how the pieces connect matters more for a working HCS scientist than mastering any single tool on its own. The same underlying segmentation and feature-extraction principles that anchor this pipeline are shared with related work on the analysis of biological microscopy images more broadly, from generalist cell segmentation to super-resolution restoration.

Building AI high-content screening analysis into routine research

AI HCS analysis has moved from an emerging capability to a practical necessity for any lab running phenotypic screens at scale. The tools available now cover the full path from raw multi-channel images to MOA calls, and the more consequential decisions for most labs are about which approach fits a given question rather than whether to use AI at all.

Classical, engineered-feature pipelines remain the more interpretable and, in several tested cases, the more generalizable choice when a model needs to transfer to new biological contexts. Deep learning representation learning earns its complexity when a lab has the scale of data and computational infrastructure to train it well, and when the biological signal of interest is subtle enough that hand-engineered features risk missing it.

Choosing well between these options is what separates effective AI HCS analysis from a pipeline that simply runs. Comparable approaches are already reshaping CNN-based image classification in drug discovery, underscoring how central this analytical layer has become across phenotypic research more broadly.
