How Robotic Liquid Handling Systems Work

Robotic liquid handling underpins many modern laboratory automation strategies, enabling precise, repeatable movement of liquids across experimental workflows. As research laboratories process increasing numbers of samples under tighter reproducibility expectations, robotic liquid handling has become a core component of standardized experimental execution.



Understanding how robotic liquid handling works is essential for evaluating its role in diverse research environments. This article examines the mechanisms, control architecture, and workflow logic of robotic liquid handling systems, focusing specifically on how automated pipetting systems operate within broader lab automation technology frameworks.

Core components of robotic liquid handling systems

Robotic liquid handling systems are composed of tightly integrated hardware and software elements that function together to perform liquid transfer tasks with high positional and volumetric accuracy.

Mechanical architecture

The mechanical design of a robotic liquid handler typically consists of:

• Pipetting heads: Single‑channel, multi‑channel, or modular heads configurable for different plate formats
• Motion systems: Gantry‑based linear rails or articulated robotic arms enabling precise X‑Y‑Z positioning
• Deck platforms: Configurable work surfaces accommodating plates, reservoirs, tip racks, and peripherals
• Actuation and sensing: Motors, encoders, pressure sensors, and liquid level detection systems



Motion control sub‑systems determine spatial accuracy and repeatability, while dispensing components govern volumetric precision. The coordination between these elements defines the physical limits and execution fidelity of automated pipetting systems.

Contact and non‑contact dispensing approaches

Robotic liquid handling systems typically employ either contact or non‑contact dispensing, each governed by distinct physical principles (Table 1).



Table 1: The physical principles of contact or non-contact dispensing approaches

Dispensing Method	Mechanism	Volume Range	Key Technical Characteristics
Contact dispensing	Tip contacts liquid surface	µL–mL	Broad liquid compatibility, higher dead volume
Non‑contact dispensing	Droplet ejection via pressure or acoustic forces	nL–µL	Reduced contamination risk, tighter calibration tolerance

Non‑contact dispensing minimizes tip interaction and is particularly useful for dense arrays, but sensitivity to droplet formation dynamics requires highly controlled operating conditions.

Automated pipetting mechanisms and liquid control

Automated pipetting is the functional core of robotic liquid handling, replacing manual aspiration and dispense actions with programmable, motor‑controlled movements.



Two primary pipetting principles dominate automated systems:

• Air displacement pipetting, where piston movement compresses an air cushion, controlling liquid volume
• Positive displacement pipetting, where a piston directly contacts the liquid



Air displacement pipetting supports broad throughput but is more sensitive to viscosity, foaming, and evaporation. Positive displacement systems provide improved accuracy for challenging liquids but require dedicated consumable architectures.



Liquid handling software compensates for variable fluid properties through predefined “liquid classes,” which specify:

• Aspiration and dispense speeds
• Pre‑ and post‑air gaps
• Tip immersion depth
• Blow‑out and mixing behaviors



These parameters influence volumetric accuracy, precision, and carryover. Incorrect liquid class selection can lead to systematic bias or increased variability, underscoring the importance of physically informed workflow configuration. Automated pipetting performance is influenced by many factors (Figure 1).

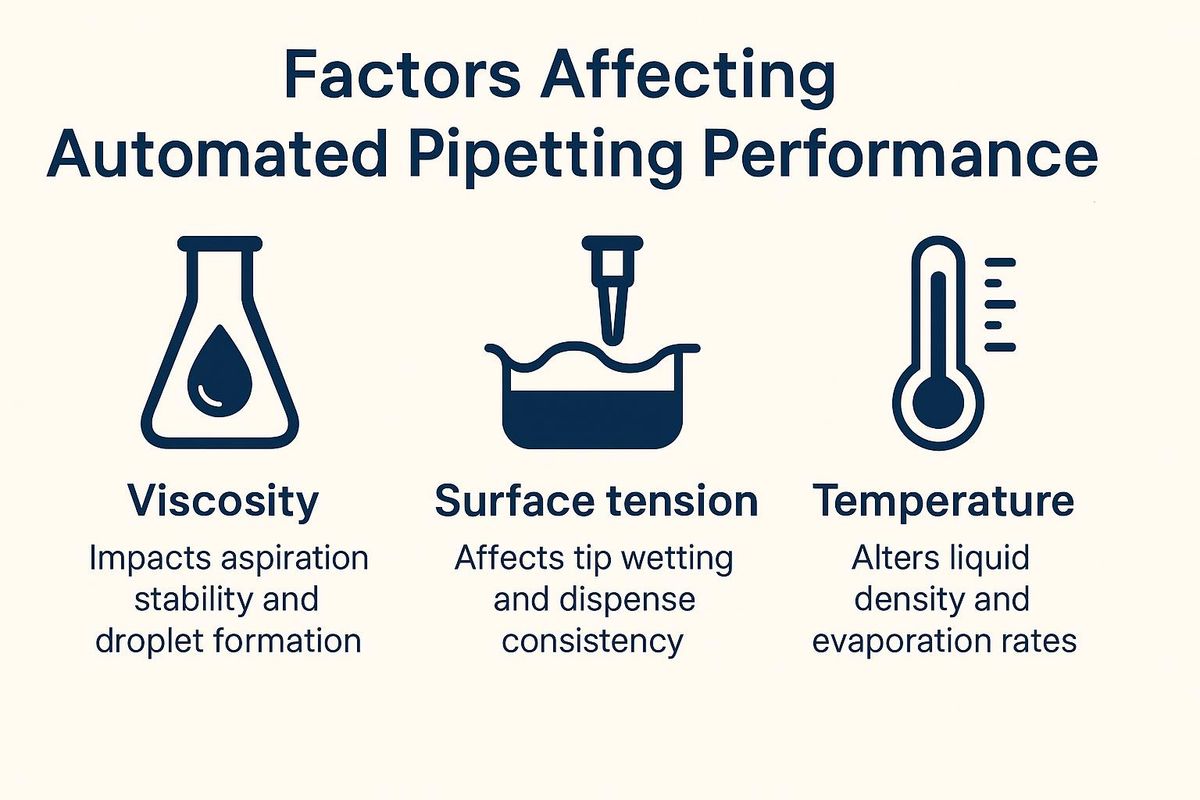

Figure 1: Key physicochemical factors influencing automated pipetting performance. Credit: AI-generated image created using Microsoft Copilot (2026).



Robotic liquid handling systems manage these factors through calibration routines and controlled execution rather than real‑time adaptive sensing in most implementations.

Motion control, calibration, and repeatability

Precision liquid handling requires accurate spatial positioning in addition to volumetric control. Motion systems govern how pipetting heads traverse the deck and interface with consumables.



Most liquid handlers rely on Cartesian gantry systems due to their mechanical simplicity and high repeatability. Articulated robotic arms offer greater flexibility but introduce increased calibration complexity.



Critical motion parameters include:

• Positional repeatability (often <0.1 mm)
• Acceleration and deceleration profiles
• Collision avoidance algorithms



Mechanical repeatability ensures consistent interaction with microplate geometries and reservoirs across runs.



Liquid handling systems undergo calibration to align physical coordinates, volume delivery, and sensor thresholds. Over time, mechanical wear, temperature shifts, and consumable variability can introduce drift.



Software‑assisted calibration routines compensate by periodically realigning axes and validating pipetting accuracy against known reference volumes, supporting long‑term workflow robustness.

Software control and liquid handler workflow execution

Software orchestrates robotic liquid handling by translating experimental protocols into executable mechanical actions.



Liquid handler workflows are defined through:

• Graphical protocol builders
• Scripted command structures
• Application‑specific templates



Protocols specify the sequence, timing, and parameters of liquid transfers, incorporating loops, conditional logic, and error handling as required. Workflow determinism ensures identical execution across batches and operators.



Control software continuously monitors execution through sensor feedback, enabling:

• Tip presence verification
• Liquid level detection
• Pressure anomaly detection



When deviations occur, systems may pause execution, abort runs, or log errors for post‑run analysis, supporting traceability and troubleshooting.

Integration within lab automation technology ecosystems

Robotic liquid handling systems often act as central hubs within broader lab automation technology environments (Figure 2).

Figure 2: Common laboratory instruments integrated with robotic liquid handling systems. Credit: AI-generated image created using Microsoft Copilot (2026).



Through scheduling software, these components execute coordinated workflows without manual intervention, enabling continuous multi‑step experimental pipelines.



Workflow integration supports:

• Barcode‑based sample tracking
• Timestamped execution logs
• Structured export to laboratory information management systems



These features enhance data integrity and support reproducibility across distributed research environments.

Operational advantages and technical boundaries

Robotic liquid handling systems provide clear operational benefits but also impose technical constraints that shape workflow design (Table 2). Recognizing these boundaries informs appropriate workflow configuration and system utilization.



Table 2: Advantages and technical boundaries of robotic liquid handling systems

Category	Description
Key advantages	Consistent liquid transfer precision across runs and operators
	Reduced operator‑dependent variability through standardized execution
	Scalable throughput across multiple plate formats and experimental volumes
Technical boundaries	Front‑loaded protocol development and optimization effort
	Sensitivity to incorrect liquid class selection affecting accuracy
	Ongoing mechanical calibration and maintenance requirements

Understanding robotic liquid handling in automated laboratory workflows

Robotic liquid handling systems function through the coordinated interaction of precise mechanical motion, controlled pipetting physics, and software‑defined workflow logic. By automating liquid transfer steps, these systems enable reproducible execution of complex laboratory protocols across disciplines.



As laboratory automation technology continues to evolve, a mechanistic understanding of how robotic liquid handling works remains essential for designing robust, scalable, and technically sound automated workflows.
