 Machine Learning Tool  Helps Optical Tomography Reaches Micrometer Resolution

Machine Learning Tool Helps Optical Tomography Reaches Micrometer Resolution

 Machine Learning Tool  Helps Optical Tomography Reaches Micrometer Resolution

Machine Learning Tool Helps Optical Tomography Reaches Micrometer Resolution

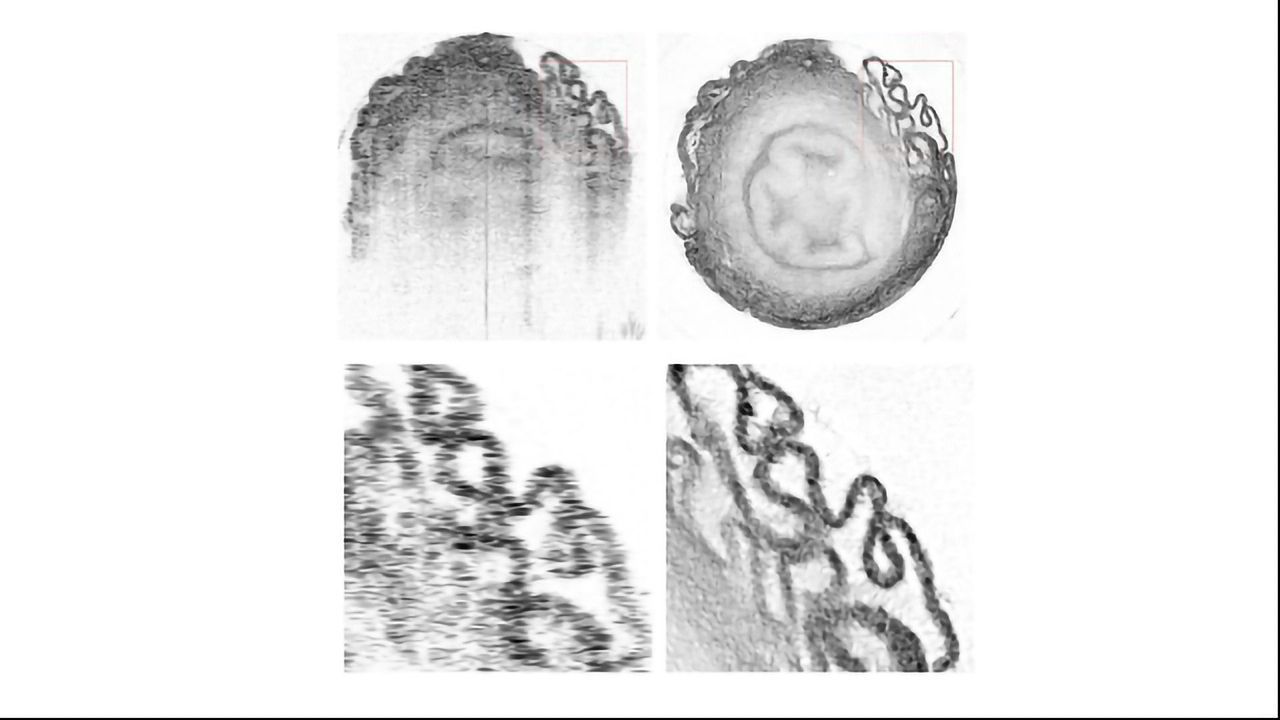

The image quality of a normal OCT scan (left) and a new OCRT scan (right) are demonstrated with a mouse vas deferens sample. Note how the OCT scan quickly deteriorates with depth while the OCTR scan produces a complete image (top), and the increase in fine detail and reduction in noise between the two (bottom). Credit: Kevin Zhou, Duke University
Read time:

Want a FREE PDF version of This News Story?

Complete the form below and we will email you a PDF version of " Machine Learning Tool Helps Optical Tomography Reaches Micrometer Resolution "

First Name*
Last Name*
Email Address*
Company Type*
Job Function*
Would you like to receive further email communication from Technology Networks?

Technology Networks Ltd. needs the contact information you provide to us to contact you about our products and services. You may unsubscribe from these communications at any time. For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy

Biomedical engineers at Duke University have devised a method for increasing the resolution of optical coherence tomography (OCT) down to a single micrometer in all directions, even in a living patient. The new technique, called optical coherence refraction tomography (OCRT), could improve medical images obtained in the multibillion-dollar OCT industry for medical fields ranging from cardiology to oncology.

The results appear in a paper published online on August 19 in the journal Nature Photonics.

"An historic issue with OCT is that the depth resolution is typically several times better than the lateral resolution," said Joseph Izatt, the Michael J. Fitzpatrick Professor of Engineering at Duke. "If the layers of imaged tissues happen to be horizontal, then they're well defined in the scan. But to extend the full power of OCT for live imaging of tissues throughout the body, a method for overcoming the tradeoff between lateral resolution and depth of imaging was needed."

OCT is an imaging technology analogous to ultrasound that uses light rather than soundwaves. A probe shoots a beam of light into a tissue and, based on the delays of the light waves as they bounce back, determines the boundaries of the features within. To get a full picture of these structures, the process is repeated at many horizontal positions over the surface of the tissue being scanned.

Because OCT provides much better resolution of depth than lateral direction, it works best when these features contain mostly flat layers. When objects within the tissue have irregular shapes, the features become blurred and the light refracts in different directions, reducing the image quality.

Previous attempts at creating OCT images with high lateral resolution have relied on holography -- painstakingly measuring the complex electromagnetic field reflected back from the object. While this has been demonstrated, the approach requires the sample and imaging apparatus to remain perfectly still down to the nanometer scale during the entire measurement.

"This has been achieved in a laboratory setting," said Izatt, who also holds an appointment in ophthalmology at the Duke University School of Medicine. "But it is very difficult to achieve in living tissues because they live, breathe, flow and change."

In the new paper, Izatt and his doctoral student, Kevin Zhou, take a different approach. Rather than relying on holography, the researchers combine OCT images acquired from multiple angles to extend the depth resolution to the lateral dimension. Each individual OCT image, however, becomes distorted by the light's refraction through irregularities in the cells and other tissue components. To compensate for these altered paths when compiling the final images, the researchers needed to accurately model how the light is bent as it passes through the sample.

To accomplish this computational feat, Izatt and Zhou turned to their colleague Sina Farsiu, the Paul Ruffin Scarborough Associate Professor of Engineering at Duke, who has a long history of using machine learning tools to create better images for health care applications.

Working with Farsiu, Zhou developed a method using "gradient-based optimization" to infer the refractive index within the different areas of tissue based on the multi-angle images. This approach determines the direction in which the given property -- in this case the refractive index -- needs to be adjusted to create a better image. After many iterations, the algorithm creates a map of the tissue's refractive index that best compensates for the light's distortions. The method was implemented using TensorFlow, a popular software library created by Google for deep learning applications.

"One of the many reasons why I find this work exciting is that we were able to borrow tools from the machine learning community and apply them not only to post-process OCT images, but also to combine them in a novel way and extract new information," said Zhou. "I think there are many applications of these deep learning libraries such as TensorFlow and PyTorch, outside of the standard tasks such as image classification and segmentation."

For these proof-of-concept experiments, Zhou took tissue samples such as the bladder or trachea of a mouse, placed them in a tube, and rotated the samples 360 degrees beneath an OCT scanner. The algorithm successfully created a map of each sample's refractive index, increasing the lateral resolution of the scan by more than 300 percent while reducing the background noise in the final image. While the study used samples already removed from the body, the researchers believe OCRT can be adapted to work in a living organism.

"Rather than rotating the tissue, a scanning probe developed for this technique could rotate the angle of the beam on the tissue surface," said Zhou.

Zhou is already investigating how much a corneal scan could be improved by the technology with less than a 180-degree sweep, and the results appear promising. If successful, the technique could be a boon to many medical imaging needs.

"Capturing high-resolution images of the conventional outflow tissues in the eye is a long sought-after goal in ophthalmology," said Farsiu, referring to the eye's aqueous humor drainage system. "Having an OCT scanner with this type of lateral resolution would be very important for early diagnosis and finding new therapeutic targets for glaucoma."

"OCT has already revolutionized ophthalmic diagnostics by advancing noninvasive microscopic imaging of the living human retina," said Izatt. "We believe that with further advances such as OCRT, the high impact of this technology may be extended not only to additional ophthalmic diagnostics, but to imaging of pathologies in tissues accessible by endoscopes, catheters, and bronchoscopes throughout the body."

Reference: Zhou, K. C., Qian, R., Degan, S., Farsiu, S., & Izatt, J. A. (2019). Optical coherence refraction tomography. Nature Photonics, 1–9. https://doi.org/10.1038/s41566-019-0508-1
