Gray Matter vs White Matter

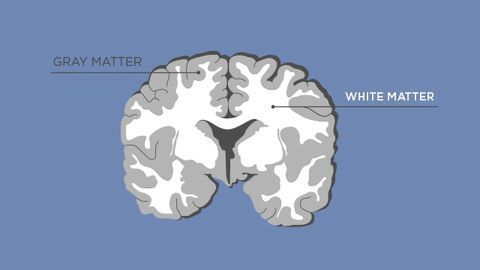

Illustration of a human brain with white and gray matter labeled.
Credit: Technology Networks
Listen with
Speechify
0:00
Register for free to listen to this article
Thank you. Listen to this article using the player above.

Want to listen to this article for FREE?

Complete the form below to unlock access to ALL audio articles.

Read time: 7 minutes


The brain is immensely complex, but there are ways we can divide up its anatomical structure: the left and right hemisphere, parietal, temporal, occipital and frontal lobes. Another common divider is to separate the brain’s gray and white matter. But what are these two structures? How different are they from each other? How significant, and physiologically relevant, is this divide? Read on to find out!


Quick summary: Gray matter vs white matter

Gray matter is made up of neuronal cell bodies, while white matter primarily consists of myelinated axons. In the brain, white matter is found closer to the center of the brain, whereas the outer cortex is mainly grey matter. The reverse is true in the spinal cord, which has a grey matter-lined interior with white matter on the outside.


Differences between gray and white matter

What is gray matter?


Gray matter consists primarily of neuronal cell bodies, or somaThis a spherical structure that houses the neuron’s nucleus. The soma also contains the cell’s cytoplasm, in which other essential organelles, such as mitochondria, can be found. When analyzed postmortem, these cell somas appear gray. But the “gray” matter of the living brain, when circulation is still in effect, is actually tan in color.


What is the function of gray matter?


The neuronal soma, and the organelles and nucleus within, is the control center of the neuron. Physically, it the point of the neuron from which other connections, such as axons and dendrites, spread.  Synaptic input from neighboring neurons can feed onto the soma.



The soma also houses essential structures that are common to all cells, such as:



  • Nucleus
  • Nucleolus
  • Mitochondria
  • Golgi apparatus
  • Endoplasmic reticulum
  • Lysosomes
  • Ribosomes


Gray matter rich areas, such as the cerebellum and cerebral cortex, have important functions in the brain.



The cerebellum was thought to be mainly involved in fine control of movement, but recent research has established the role it plays in cognition and emotional processing. The cerebral cortex is the primary site of cognition in the brain and is divided into numerous functional areas, including those responsible for memory, reasoning, senses and language.


What is white matter?


White matter-rich areas of the brain mainly consist of myelinated axons, which are long relays that extend out from the soma. These axons are whiteish in color due to the relatively high lipid fat content of the myelin protein that sheathes them. Axons form connections between brain cells and are usually distributed into bundles, called tracts, in the central nervous system (brain and spinal cord) or nerves (peripheral nervous system).


What is the function of white matter?


Neuron-rich brain regions wouldn’t count for much without the rich veins of axonal connections contained within white matter to join them up.



Axons are the structures that allow nerve signals to be transmitted at high speeds. Myelin is key to this communication. The protein acts as a form of insulation and forces ion channels to group together in short unmyelinated gaps called nodes of Ranvier. This causes the nerve impulse signal to “jump”, which is integral to the rapid communication that facilitates the sensory and motor functions of the mammalian brain.



Myelin is deposited onto axons by glia (non-neuronal cells) called oligodendrocytes. These cells will reactively wrap myelin onto nearby surfaces when cultured in a dish, but, through mechanisms that are not fully understood, are able to target specific axons for myelination. Myelin thickness and length also varies in response to unclear organizing principles throughout the brain. Not every axon is myelinated – some, even those bundled into myelin-containing tracts – remain unsheathed. One estimate suggests that only 30% of the mouse corpus callosum (the bundle of nerve fibers connecting the hemispheres of the brain) is myelinated.



The axon may, in terms of volume, represent more than 95% of the total neuron. Axons range in length, from a few hundred micrometers up to over a meter. Their diameter is between 1 and 25 μm.


So gray matter contains neurons and white matter contains axons. Is it really that simple?


Not quite. While the above division is physiologically accurate on a system level, there are a mix of cell types present in both gray and white matter.


Gray matter also contains:

  • Axon tracts – although these are only present in small numbers.
  • Glial cells – These non-neuronal cells, such as microglia and astrocytes, make up a large proportion of cells in the brain. Originally thought to provide a purely supportive role for more important neurons, glia are now recognized to have a range of functions in health and disease.
  • Capillary blood vessels – Vasculature weaves its way through the brain, providing oxygen and nutrients to energy-consuming neurons and glia while filtering out waste products.
  • Dendrites – these are the other type of neuronal projections.
  • Neuropil – regions consisting of a mix of dendrites, unmyelinated axons and glia. There are relatively few cell bodies in the neuropil, and it has been used in some studies as a proxy for connections within a brain area due to the high number of synapses present.



White matter also contains:


How are gray matter and white matter arranged in the CNS?


Both gray and white matter are spread throughout the human central nervous system – the brain and spinal cord. Where are they located?

A diagram showing the locations of gray and white matter in the brain.

Figure 1: The arrangement of white and gray matter in the brain. Credit: Technology Networks.


Gray matter location


Neuronal cell bodies are abundant in the cerebrum, brain stem and cerebellum. This latter structure, which makes up just 10% of brain volume, contains more neurons than the rest of the brain put together. In the cerebrum, gray matter is primarily found surrounding white matter in in the brain’s external areas. This coating of neurons surrounding the cerebrum is known as the “cortex”, taken from the latin for “bark”.  Regions of gray matter that are located in deeper regions of the brain are called nuclei.



Gray matter-heavy brain regions include those that control muscular and sensory activity.

  • Cerebral cortex - The outer layer of the brain, the cerebral cortex, consists of columns of gray matter neurons, with white matter located underneath. This area is essential to many facets of higher learning, including attention, memory and thought.
  • Cerebellum - The cerebellum is essential for motor control, coordination and precision.

In the spinal cord, gray matter is conversely located towards inner regions and forms a “butterfly” structure, which can be visualized below in figure 2.


So which regions of the central nervous system have an external layer of gray matter?


The cerebrum and cerebellum are the brain regions which have an external layer of gray matter (figure 1). The brainstem’s gray matter is located in groups of neurons called nuclei which are embedded within white matter tracts.


White matter location


As previously mentioned, white matter is organized into tracts of axons. In the cerebrum and cerebellum, white matter is predominantly found in deeper areas – with gray matter coating the white matter (figure 1). Other gray matter structures, like the basal ganglia, are embedded within this white matter core. The brain’s fluid-filled ventricles are also found within the white matter.


In the spinal cord, things are largely reversed – the white matter is distributed around the central gray matter “butterfly”.

A diagram showing the locations of gray and white matter in the spinal cord.

Figure 2: The arrangement of white and gray matter in the spinal cord. Credit: Technology Networks.


Diseases of gray and white matter

Gray matter disease


Diseases that cause the loss of the neurons that make up gray matter are primarily called neurodegenerative diseases. These diseases, which include dementias like Alzheimer’s disease and frontotemporal dementia, affect millions of people worldwide. White matter alterations are often present in these diseases, but physiological hallmarks such as amyloid plaques and tau neurofibrillary tangles are located in the gray matter. As might be expected, the region where neurons are lost largely dictates disease progression – the motor symptoms of Parkinson’s disease are directly related to the loss of dopamine-producing neurons in the substantia nigra.


White matter disease


As James Balm phrases it in this article, white matter tracts are the subways of the brain, vital connections that ensure the smooth operation of our nervous system. As such, disease that affects our white matter can disrupt this nerve signal transit and can be a serious issue.

  • Multiple sclerosis – In multiple sclerosis (MS) the white fatty myelin coating around axons is destroyed, leading to motor or sensory disruption. In relapsing-remitting multiple sclerosis, this myelin can be repaired and lost multiple times. In progressive multiple sclerosis, axonal damage is followed by neuron death, which is irreversible.
  • White matter disease – responsible for roughly a fifth of strokes worldwide, white matter diseases affect blood vessels buried within white matter. These harden, preventing oxygen and other nutrients from reaching the white matter.
  • Spinal cord injury – When the axon bundles in the spinal cord are damaged, the connection between the brain and spinal cord gray matter is lost. This can cause paralysis and sensory issues, which are often permanent if neuronal bodies are damaged.
