Exploring Proteomics Techniques: From Mass Spectrometry to Shotgun
A comprehensive overview of proteomics techniques used for protein characterization, quantification, and discovery.
The detailed analysis of proteins—the proteome—is central to modern life science research, drug discovery, and diagnostics. Understanding protein expression levels, modifications, and interactions provides critical functional insight often unattainable through genomics or transcriptomics alone. The field relies on sophisticated proteomics techniques to separate, identify, and quantify thousands of proteins from complex biological samples. Incorporating appropriate proteomics techniques is essential for researchers striving for comprehensive molecular characterization. The following sections explore the foundational and cutting-edge methodologies that define current protein research.
Foundational separation: Mastering 2D gel electrophoresis
Two-dimensional polyacrylamide gel electrophoresis (2D gel electrophoresis) is one of the earliest high-resolution proteomics techniques used for visualizing and separating complex protein mixtures. This method separates proteins based on two independent properties: isoelectric point (pI) in the first dimension and molecular weight (MW) in the second dimension.
The first dimension involves isoelectric focusing (IEF), where proteins migrate through a pH gradient until they reach the pH corresponding to their pI (where they hold no net electrical charge). The focused proteins are then separated in the second dimension via SDS-PAGE (sodium dodecyl sulfate–polyacrylamide gel electrophoresis), where separation is based purely on MW.

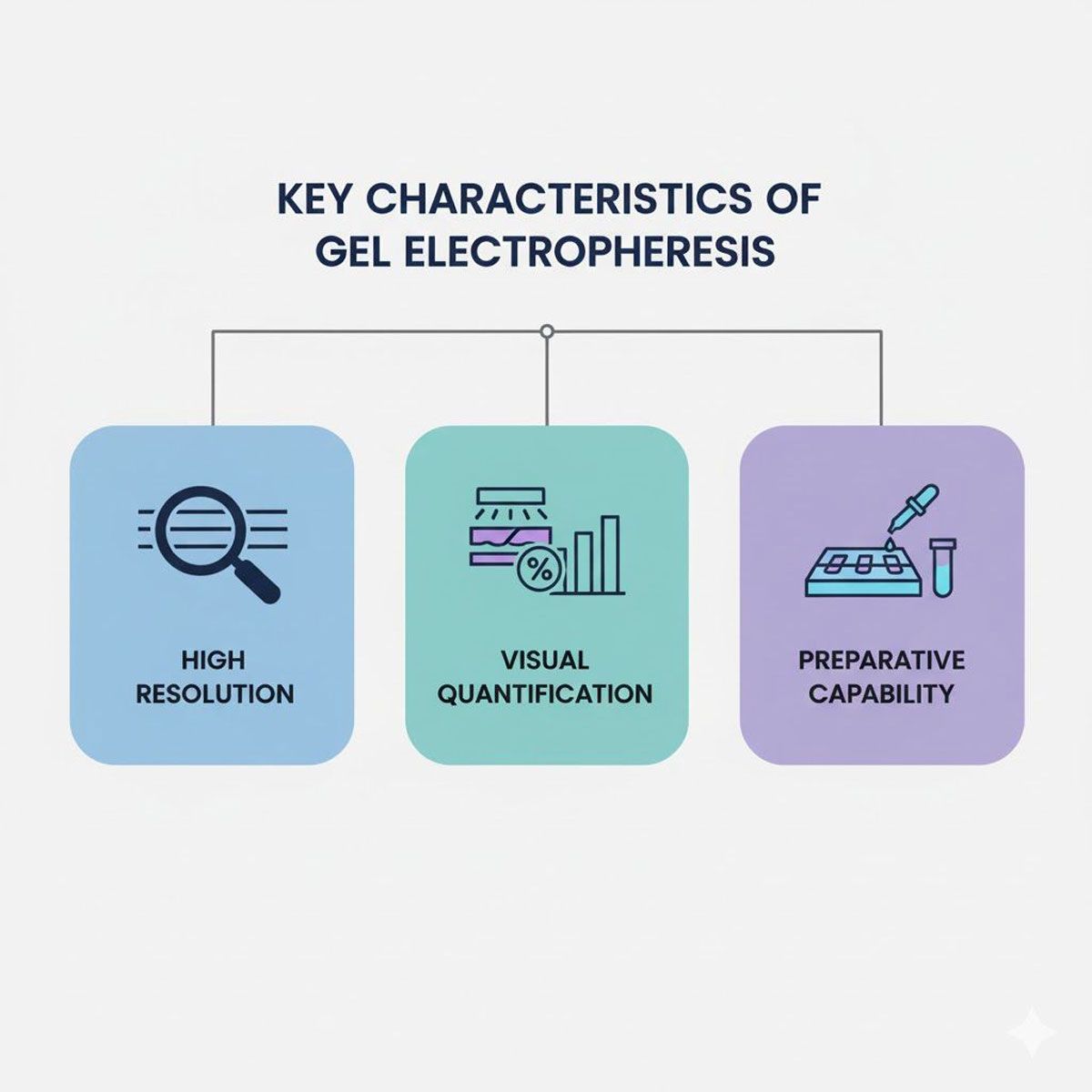

Key characteristics of 2D gel electrophoresis:
High Resolution: Capable of resolving thousands of protein spots on a single gel.
Visual Quantification: Relative protein abundance can be assessed by staining intensity.
Preparative Capability: Individual spots can be excised for subsequent mass spectrometry (MS) identification.
Limitations: The technique can be time-consuming, requires relatively large sample amounts, and has difficulty resolving highly acidic, basic, large, or hydrophobic proteins.
Credit: AI-generated image created using Google Gemini (2025).
Despite the rise of automated liquid chromatography methods, 2D gel electrophoresis remains a valuable tool for comparative proteomics studies, particularly for visualizing global changes in protein expression across different conditions or cell states.
Principles of mass spectrometry for protein identification
Mass spectrometry (MS) is the core analytical platform underpinning most modern proteomics techniques. MS measures the mass-to-charge ratio (
For proteins, direct MS analysis is often challenging due to their size and complexity. Therefore, a common strategy in proteomics techniques is to digest proteins into smaller peptides using an enzyme like trypsin. These peptides are then analyzed by the mass spectrometer, a process known as peptide mass fingerprinting or tandem MS (MS/MS).
Two dominant ionization methods in proteomics are:
- Electrospray Ionization (ESI): Generates multiply charged ions directly from a liquid phase. ESI is highly compatible with upstream separation methods, notably liquid chromatography.
- Matrix-Assisted Laser Desorption/Ionization (MALDI): Involves embedding the analyte in a crystalline matrix. A laser pulse desorbs and ionizes the molecules, typically generating singly charged ions. MALDI is highly compatible with analyzing samples directly from surfaces, such as tissue sections or 2D gels.
The selection of the ionization source and the type of mass analyzer (e.g., time-of-flight (TOF), quadrupole) dictates the sensitivity, speed, and mass accuracy achievable by the various proteomics techniques.
Discovery-driven analysis: Comprehensive shotgun proteomics and LC-MS
Shotgun proteomics, also referred to as "discovery proteomics," is the dominant methodology for large-scale identification and quantification of proteins in a sample. It bypasses the need for 2D gel separation prior to MS analysis.
In shotgun proteomics, the entire protein mixture is enzymatically digested, and the resulting peptides are separated using high-performance liquid chromatography (LC) before being introduced into the mass spectrometer. This coupling of LC and MS (LC-MS) is crucial for handling the complexity of the peptide mixtures derived from a whole proteome.
The typical LC-MS workflow in shotgun proteomics involves:
Protein Digestion: Converting proteins into peptides.
Peptide Separation (LC): Peptides are separated based on their physicochemical properties, such as hydrophobicity, before entering the MS.
Data-Dependent Acquisition (DDA): The mass spectrometer scans the precursor ions (peptides) and automatically selects the most abundant ions for fragmentation (MS/MS).
Database Searching: The resulting MS/MS spectra are matched against protein databases to identify the original proteins.
This approach provides a powerful and high-throughput means for deep proteome coverage. The high mass accuracy and sensitivity of modern instruments have driven LC-MS to the forefront of proteomics techniques. It is instrumental in detecting thousands of proteins and mapping post-translational modifications (PTMs).
Focused validation: Targeted proteomics and MALDI-based approaches
While shotgun proteomics excels at discovery, targeted proteomics focuses on the precise quantification of a predefined set of proteins. This methodology is critical for validating findings from discovery studies, clinical biomarker quantification, and routine monitoring.
The Advancing Applications of Western Blotting
This infographic provides a comprehensive look at the evolving landscape of western blotting. It outlines diverse application areas and explores technological advances that are overcoming long-standing limitations.View Infographic
The core of targeted proteomics is the selection of specific peptides (surrogate markers) that uniquely represent the target proteins. The mass spectrometer is then programmed to exclusively monitor these target peptides, maximizing sensitivity and quantitative accuracy.
Table 1. Common targeted proteomics assays.
Assay Name | Primary Goal | Use Case |
Selected Reaction Monitoring (SRM) | High-sensitivity quantification. | Precise measurement of low-abundance proteins in clinical samples. |
Parallel Reaction Monitoring (PRM) | High-resolution quantification and verification. | Highly selective quantification with simultaneous confirmation of peptide identity. |
Data-Independent Acquisition (DIA) | Comprehensive, quantitative profiling. | A hybrid approach that measures all detectable ions, providing deep quantitative coverage while maintaining high selectivity. |
The move towards targeted proteomics represents a transition from qualitative identification to rigorous, quantitative analysis, a necessary step for translating research into clinical applications.
MALDI for targeted and spatial proteomics
While LC-MS dominates discovery work, MALDI mass spectrometry retains significant utility in specialized proteomics techniques. MALDI is often used for high-throughput screening and in matrix-assisted laser desorption/ionization mass spectrometry imaging (MALDI-MSI).
MALDI-MSI enables mapping of tens to hundreds of proteins directly on a tissue section, depending on instrument sensitivity and resolution. This approach is powerful because it provides molecular information while preserving tissue morphology, eliminating the need for extracting and homogenizing the sample, which can obscure crucial spatial context.
Advancing research: Future directions in proteomics
The landscape of proteomics techniques is continually evolving, driven by advancements in instrumentation and computational power. Innovations are increasingly focused on improving speed, sensitivity, and throughput, particularly for single-cell analysis and high-throughput screening. New sample preparation methods minimize sample loss and processing time, making the application of various proteomics techniques more accessible and robust. The integration of artificial intelligence and machine learning is also enhancing the analysis of complex MS data, leading to more accurate protein identification and quantification. Continued refinement of these proteomics techniques is poised to unlock deeper biological insights, moving the field closer to routine, comprehensive proteome analysis.
